Overview
Police body camera often utilized by law enforcement to record their interactions with the public or gather video evidence at crime scenes.
Nowadays it's also widely used in military, public service and citizen surveillance.

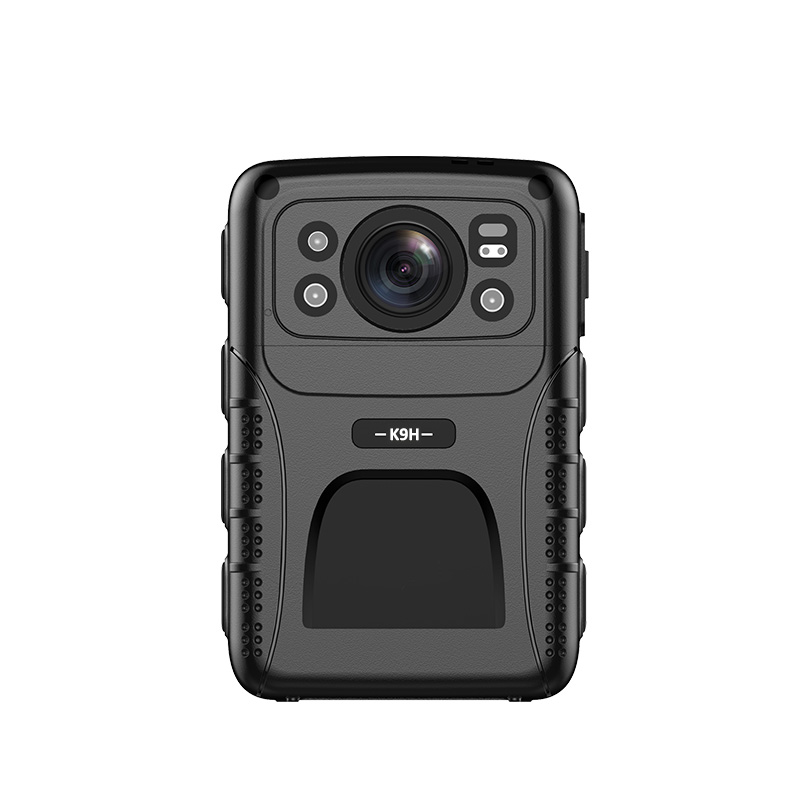

K9h Body Worn Camera is the latest product developed by CammPro, it has the highest configurations and the most functions.
Bullet Points of Cammpro K9h Body Worn Camera
▶ Ambarella H22 High-Class Chipset, OV4689 Sensor.
▶ Support Wi-Fi & 4G live streaming (Optional).
▶ Support Wi-Fi in AP/STA mode.

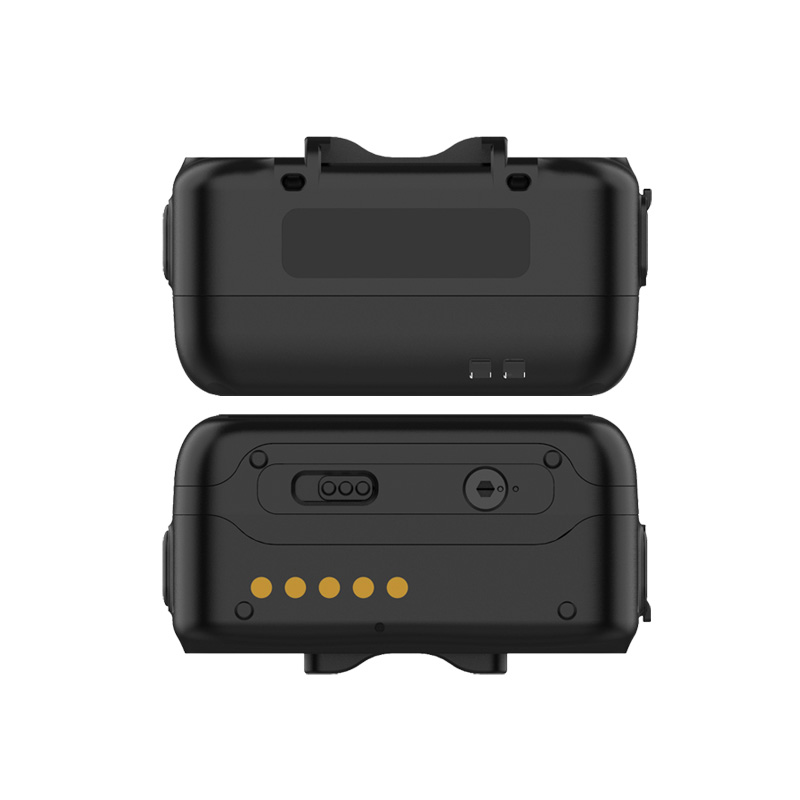

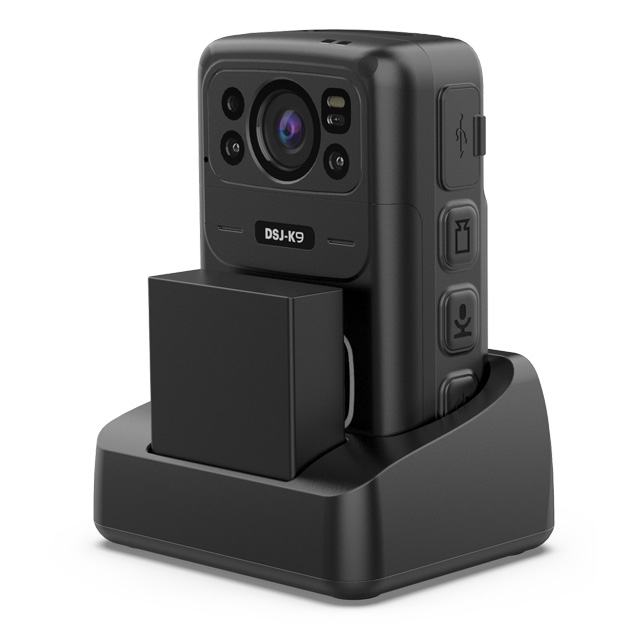

▶ Removable battery, support battery replacement under constant power.
▶ Super low power consumption, single battery supports 8 hours recording at 1080P.
▶ 172° HD wide-angle lens.
▶ The maximum video quality is up to 2560*1440 30FPS.
▶ The maximum photo pixel is up to 40M (6144*3456).

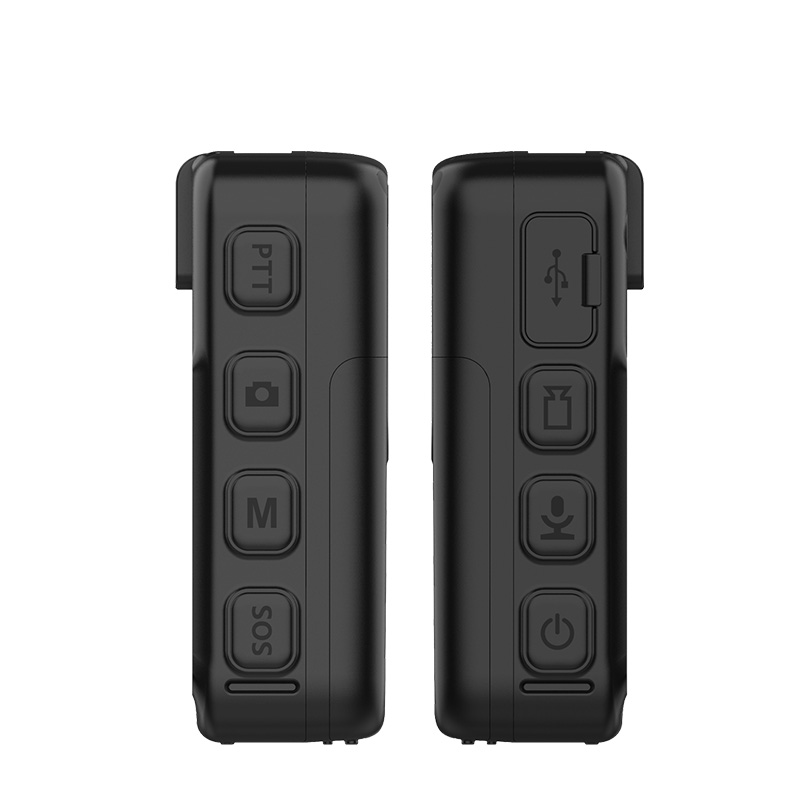

▶ Support one-click to start audio/video recording.

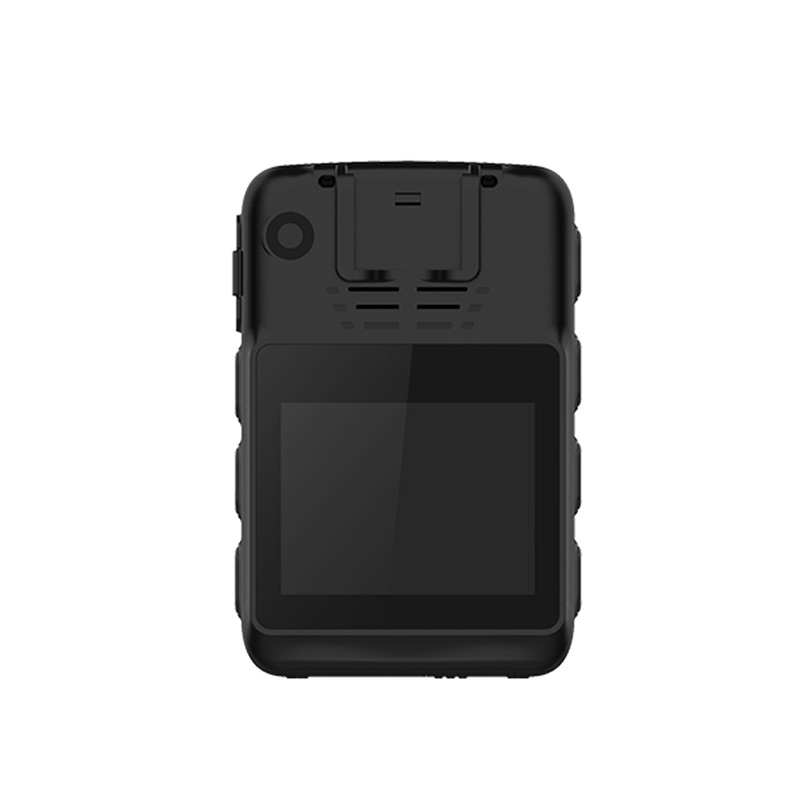

▶ 2.0 inch HD color screen with resolution 960*240 .
▶ Built-in 32GB TF card, 64GB or 128GB for option.
▶ Support satellite positioning (GPS/Beidou).
▶ Built-in G-Sensor.
Basic Hardware Parameters | |
Model | K9H |
CPU | Ambarella H22A35M |
Sensor | OV4689 1/3”CMOS Sensor 4M pixel |
DDR3 | 4Gb(DDR3) 256*16bit/ |
Lens | FOV=172° HD wide-angle lens 6G |
Screen | 2.0” LCD 960*240 pixel |
Video Parameters | |
Shooting Angle | Field of View≥145°Horizontal field of view≥125°Geometric distortion≤10% |
Video Resolution | 2560x1440P/30fps ,2304x1296P/30fps,1920x1080P/30fps ,1440x1080P/30fps,1280x720P/60fps,1280X720P/30fps,848x480P/30fps |
Video Format | MP4 |
Video encoding format | H.264 |
Video encoding bit rate | 2.5-12M bps |
One-click Recording | Support one-click to enable video/audio recording when camera is power off. |
Pre-recording | Support ≥10s Pre-recording |
Post Recording | Support ≥40min Post Recording |
Video Quality | Super fine/ normal |
Split Time | 1min/5mins/10mins/15mins |
Burst Shoot | Support shooting photos in video recording |
Watermark | Support 7 digits device ID, 6 digits USER ID, time & date |
Motion Detection | Support |
Loop Recording | Support |
Photo Parameters | |
Photo Pixel | 4M(2688*1512)/8M(3264*2488) /14M(4384*3288) /16M(4608*3456) /21M(6144*3456) /36M(8000*4500) /40M(8000*5000) |
Photo Format | JPG |
Continuous shooting | Continuous shooting 2/3/5/10 |
Timed shot | Support 5s/10s |
Audio Parameters | |
Audio Format | AAC |
Audio bit rate | 128k bps |
Display / Playback Parameters | |
Fast forward speed | 2X,4X,8X,16X,32X,64X,128X |
Rewind speed | 2X,4X,8X,16X,32X,64X,128X |
Slideshow | Support |
Screen Lightness | ≥500LMX |
Screensaver | Support 30s/1min/3mins/5mins |
Battery Parameters | |
Battery Type | Built-in 2300mAh polymer lithium ion battery |
Charging Time | Less than 150 mins |
Battery Life | ≥8 hours(1920*1080P/30fps,H.264,normal video quality,Wi-Fi/4G off, IR & 4G off) |
Battery Indicator | Support |
Low Battery Alarm | Support, screen prompt and alarm |
4G Function (Optional) | |
4G Live Streaming | Support |
Streaming Resolution | 848X480P/15fps |
Wi-Fi Function (Optional) | |
Wi-Fi Live Streaming | Support |
Streaming Resolution | 848x480P/15fps |
Transmission distance in AP mode | ≥15 meters |
STA Mode | Support |
Other Functions | |
Night Vision | Support 10 meters |
Auto IR | Support Manual / Auto enable infrared night vision |
Satellite positioning | Support GPS,Beidou |
G-Sensor | Support |
Key File Tag | Support |
Voice Prompts | Support |
Extra Long Standby | Support long standby for over 7 days |
Vibration Motor | Support |
Automatic shut-down | 30s/1min/3mins/5mins |
Password Protection | User can view the files only but cannot delete them, only administrator can manage them with right password by software |
Boot time | Less than 3s-5s |
Storage | Built-in 32GB TF card, 64GB or 128GB for option. |
Data Connection | Micro USB2.0(Charging/PC data transmission) |
Power Supply | 5V/1A |
Indicator | Support on/off |
Microphone | 42dB -/2dB |
Speaker | Built-in 1W speaker |
Language | English (support customize) |
Support System | WindowsXP, Windows Vista, Windows7、Windowsd8.1 Windows10 |
Dimension | 85mm*55mm*29mm |
Weight | ≤145g(without clip) |
Working Temperature | -30℃—55℃ |
Store Temperature | -40–80℃ |
Shock-proof Level | 1.5 maters |
Water-proof level | IP65 |
