Overview

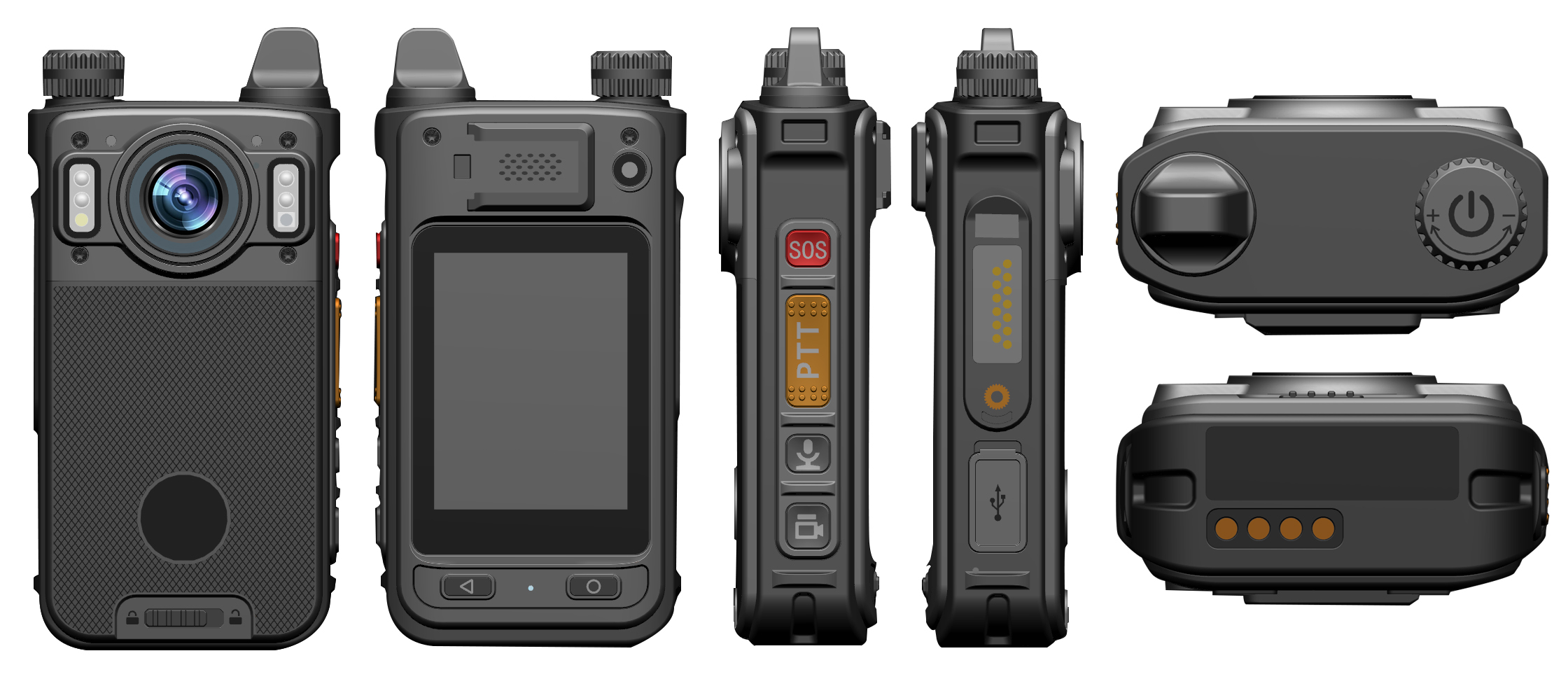

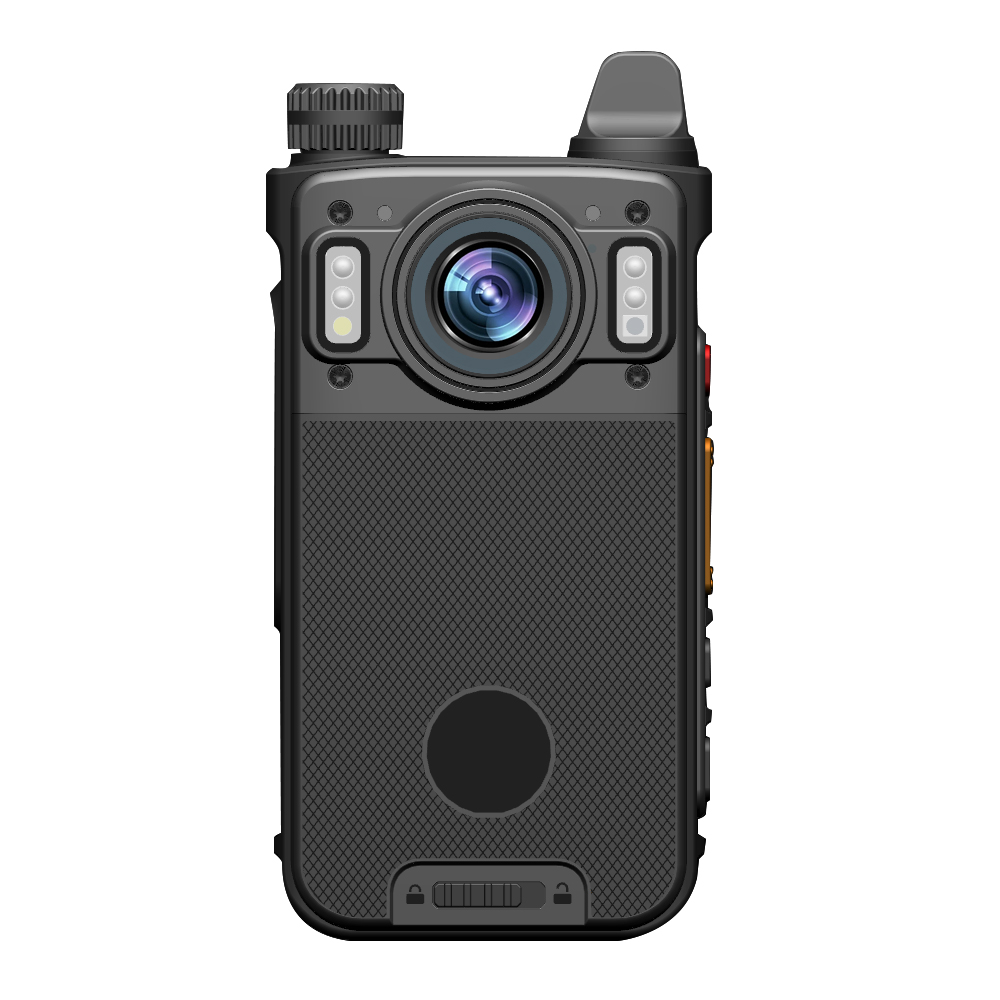

R1M 4G PoC Body Worn Camera is a new product developed by CammPro.
The R1M Body Camera features 4G PoC communication, dual-lens HD recording, long battery life, precise positioning, and multiple platform integration protocols, making it ideal for law enforcement, public safety, security, and other mission-critical field operations.
▶ 4G public network intercom, no distance limitation within network coverage
▶ WiFi fast video transmission
▶ 3300mAh removable battery
▶ Single Battery Support Continuously 12hours at 1080P
▶ 2.4-inch high definition touch screen
▶ Front & Rear Dual Lens, 64MP Photo Pixel+2K HD Video Recording
▶ 4G RAM(DDR)+64GB (EMMC) storage, and support extendable memory up to 512GB
▶ Supports GPS/BeiDou/Galileo/GLONASS/high-precision BeiDou RTK(optional) positioning

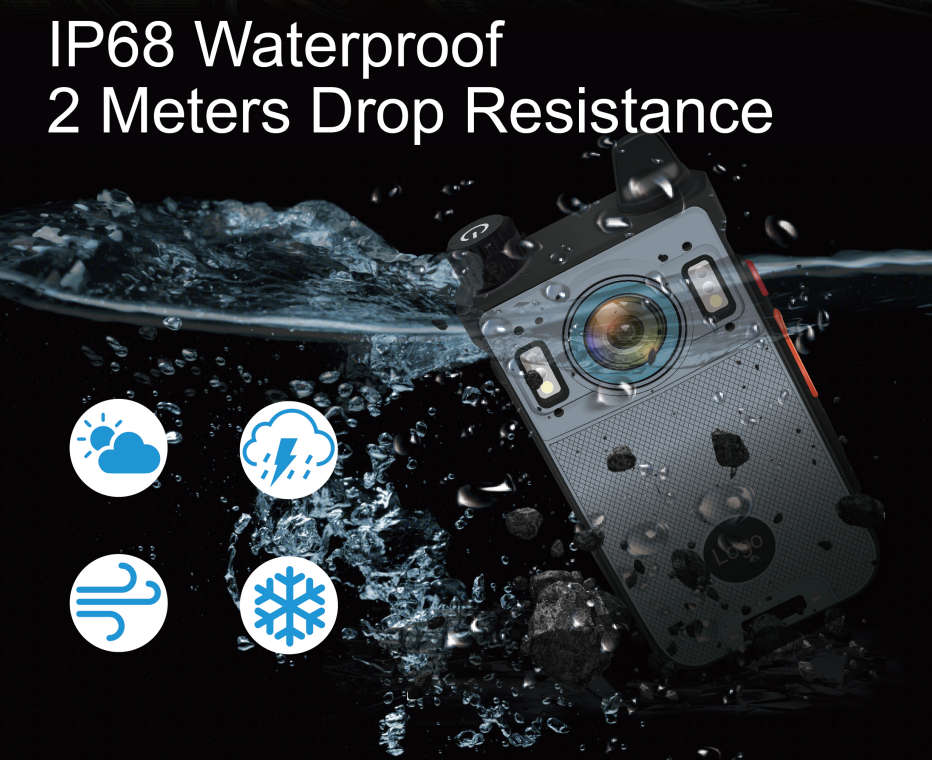

▶ Waterproof IP68 & 2 meters drop resistance
▶ Bluetooth/ NFC wireless connection(optional)
▶ Support Face Recognition
▶ Support National Standard RTMP/RTSP, ONVIF, GB28181, JT1078, CMSV9, WEBRTC protocol.
| System | WiFi | 2.4/5 GHz, 802.11a/b/g/n/ac | |
| Operation system | Android 12.0 | Other connections | BT 5.0 |
| RAM | 2GB or 4GB | Night vision | off/on/automatic |
| ROM | 16GB or 64GB | Automatic white balance | Support |
| TF card | 64GB-512GB (optional) | Light | White light; Infrard light; Strobe light |
| Photo & Video | Interface | ||
| Image pixel | 64MP/48MP/36MP/32MP/20MP/16MP/11MP /5MP/4MP | Sim-card slot | Nano SIM card |
| Recording resolution | 2560*1440 30fps/1920*1080P 30fps/ 1280*720 30fps/640*480 30fps | USB Type-C | Support 5V/2A fast charging |
| Compression | H.264 / H.265 | Charging connection interface | USB |
| Dual-stream | Support | Battery | |
| Display | 2.4-inch HD touch screen | Battery | 3400mAh removable battery |
| EIS | Support | Continuous recording time | 1080P up to 12 hours |
| Field of view | 115° | Charging time | 2.5hours |
| Video format | MP4 | Continuous power | Built-in small battery for battery replacement |
| Photo format | JPG | Charging on the go by external USB Type-C power bank | Support |
| Loop recording | support | Others | |

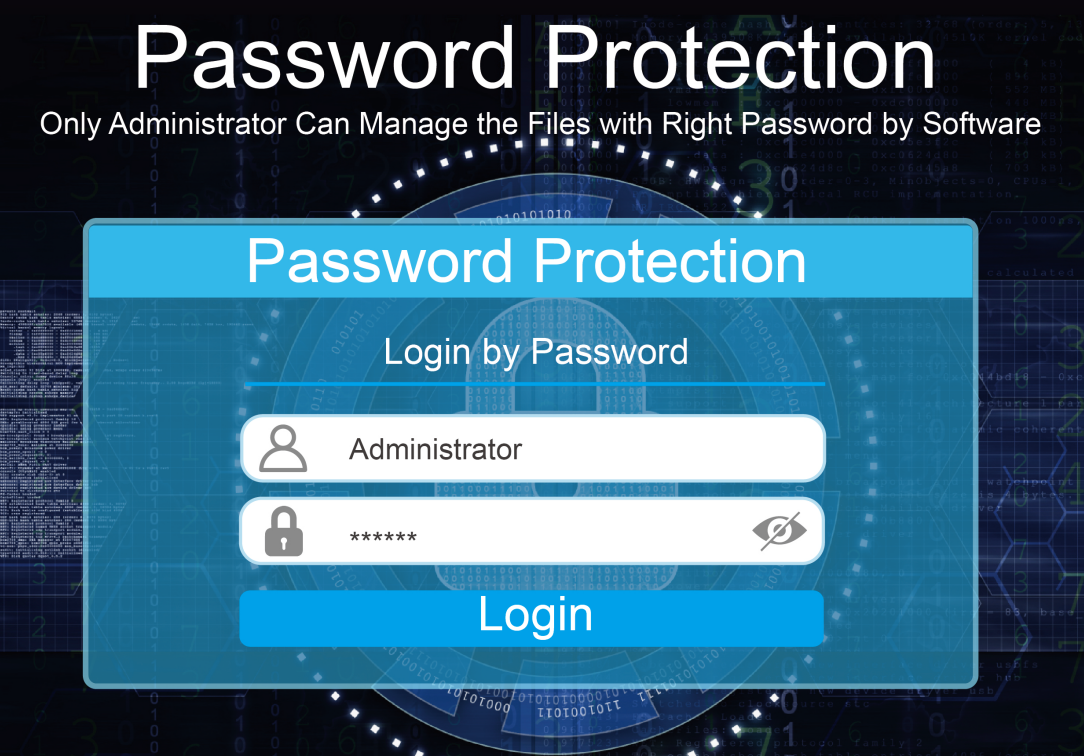

| Pre-recording | 0s/5s/15s/30s | Encryption | Password protection; AES256 |
| Post recording | 0s/5s/30s/60s/300s | Voice broadcast | support |
| Audio | Indicator light | 2 color LED | |
| Microphone | 8Ω/2W | Sensors | G-sensor, Ambient light |

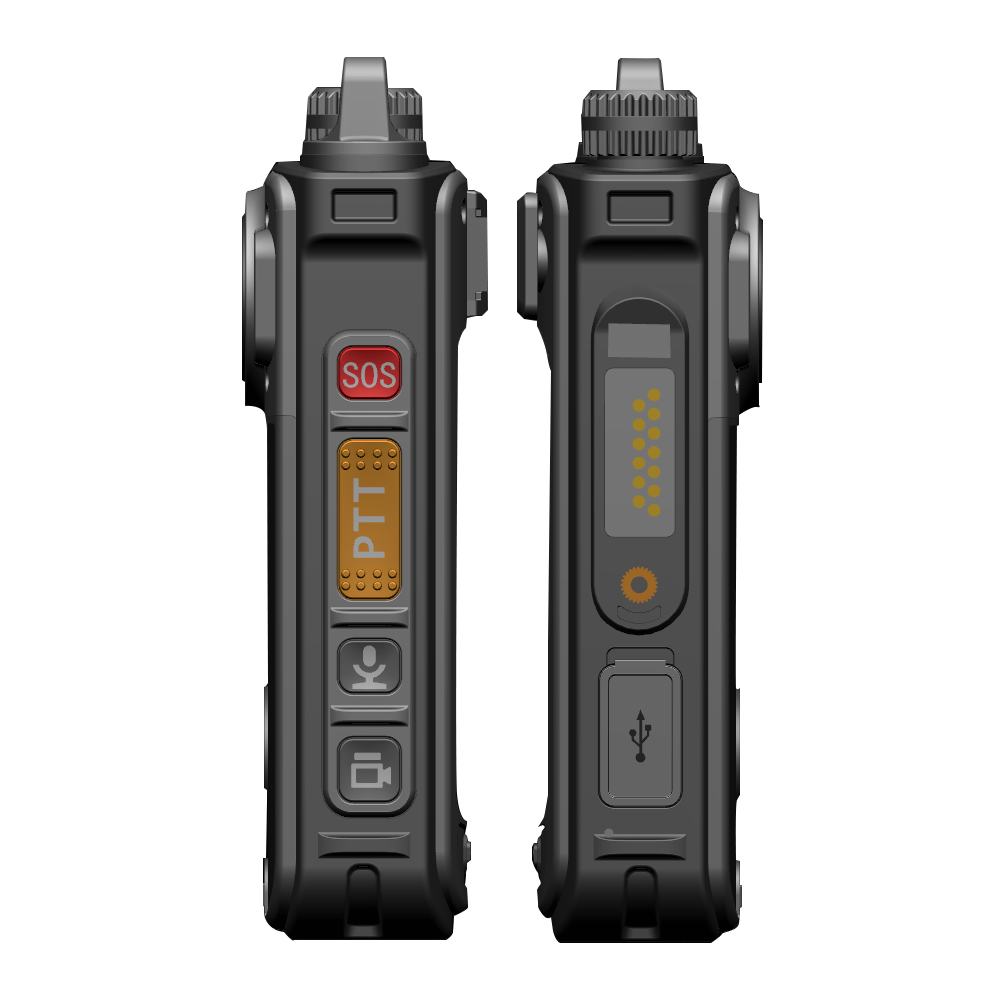

| Speaker | Built in | Quick Access button | Power/video/audio/snapshot/ SOS/menu/PTT |
| Audio format | AAC | ||
| Network | GNSS location real-time tracking | Support | |
| 4G frequency band | LTE FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28 | Face recognition | Support |
| TD-LTE: B38/B39/B40/B41 | Talk over cellular with command center | Support | |
| 3G frequency band | WCDMA: B1/B2/B4/B5/B8 | Cluster intercom | Support |
| GSM fequency band | B3 1800 MHZ | General | |

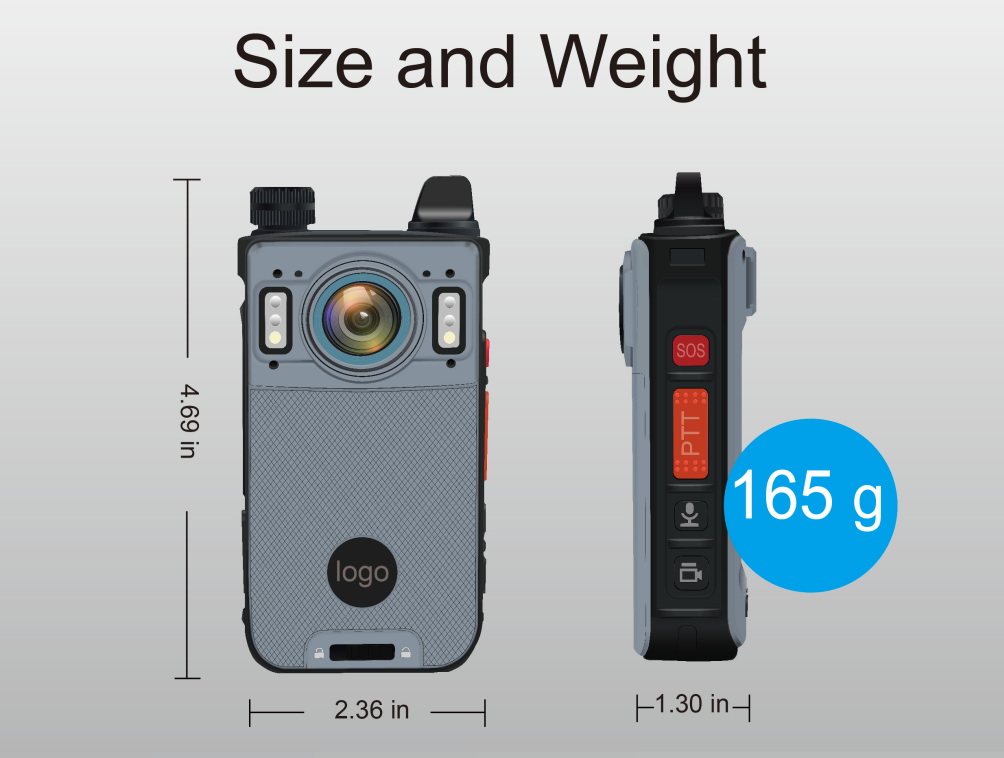

| Dimensions | 119 x 60 x 33 mm (without antenna) | ||
| B5 850 MHZ | Operating temperature | -20 to +55℃ | |
| B8 900MHZ | Storage temperature | -30 to +60℃ | |
| NFC | Support (optional) | Ingress protection level | IP 68; 2 meters drop resistance |
| GNSS | GPS/BeiDou/Galileo/GLONASS | Weight | ≤165g (without clip) |
