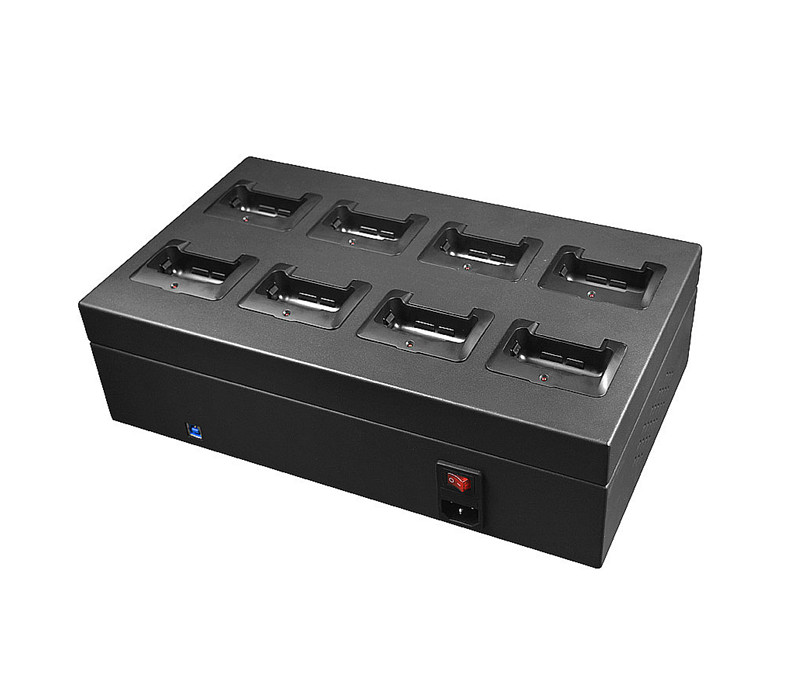

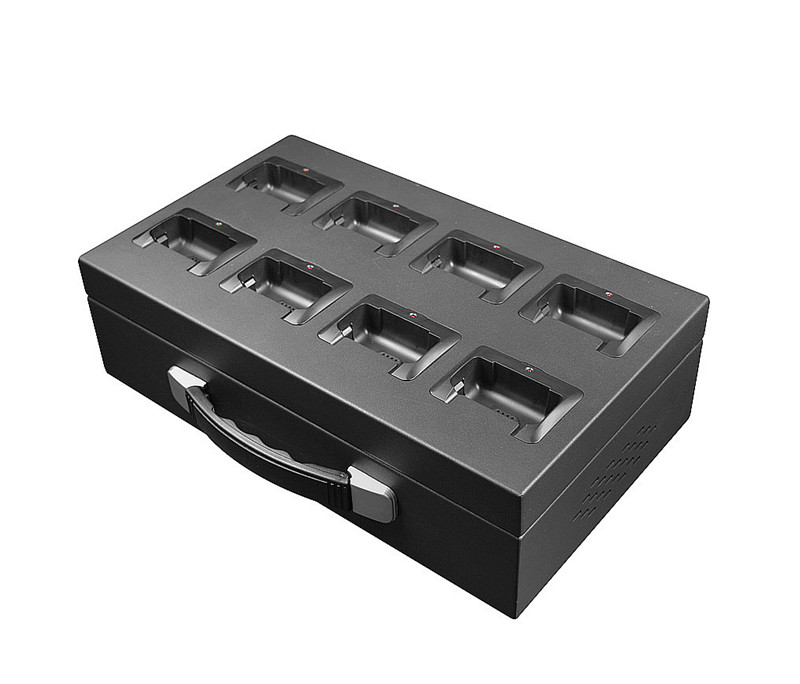

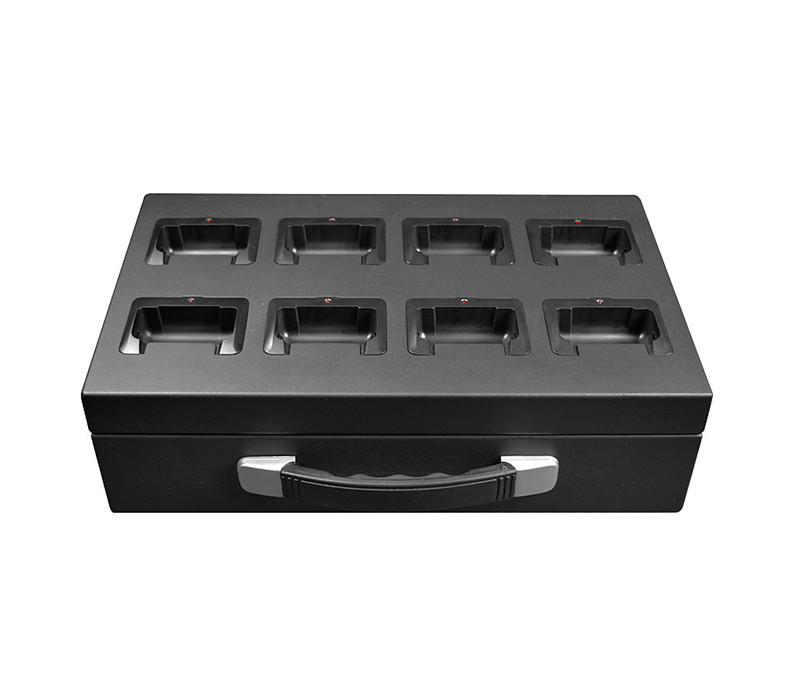

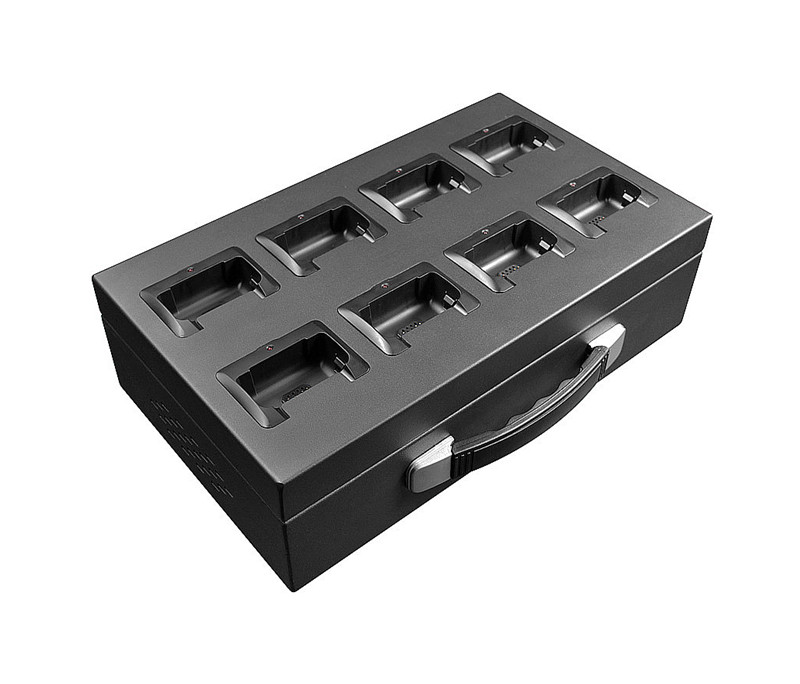

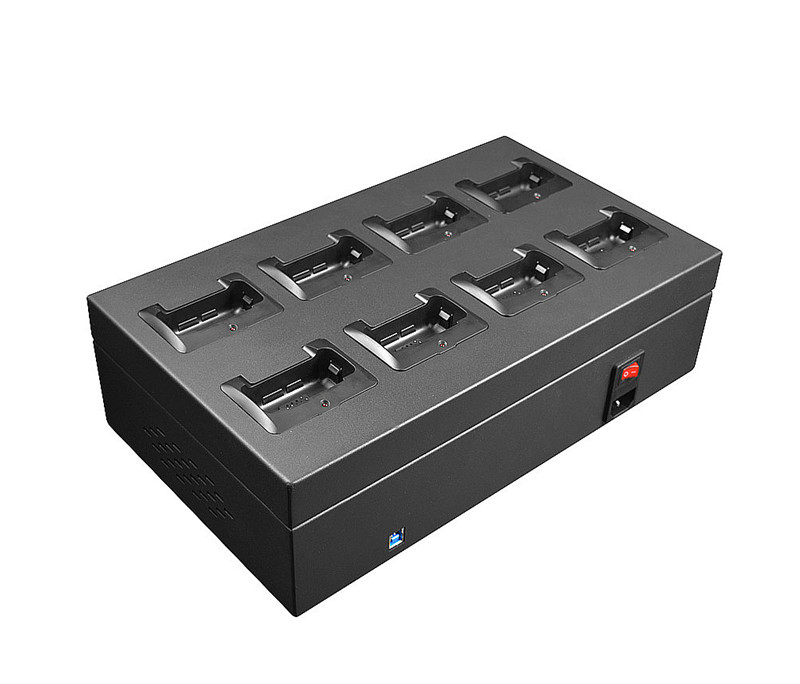

MCT-M7 is a widely used one-stop solution docking station to manage mutiple police cameras
It's a high cost effective docking station that compatible with Cammpro Police Camera I826, I827, and M852.
● Auto Fast Charging For 8 Police Body Cameras Together
● Auto Download Audios, Videos, Logs From Body Camera
● All-metal Housing, Tough and Durable for Special Purposes
● Compatible Windows 7,8,10 32Bits or 64Bits.
Bullet Points of MCT-M6 Docking Station
▶Visual Download Status
Docking Station displays data download status, number of files downloaded, and estimated download time from
each connected body worn camera.
▶Camera Data Purge
Docking Station automatically purges all recorded data from connected BWC after all data has been downloaded
from the device.
If download from BWC to docking station is interrupted, the docking station will resume download from where it
last left off when the camera is reconnected.

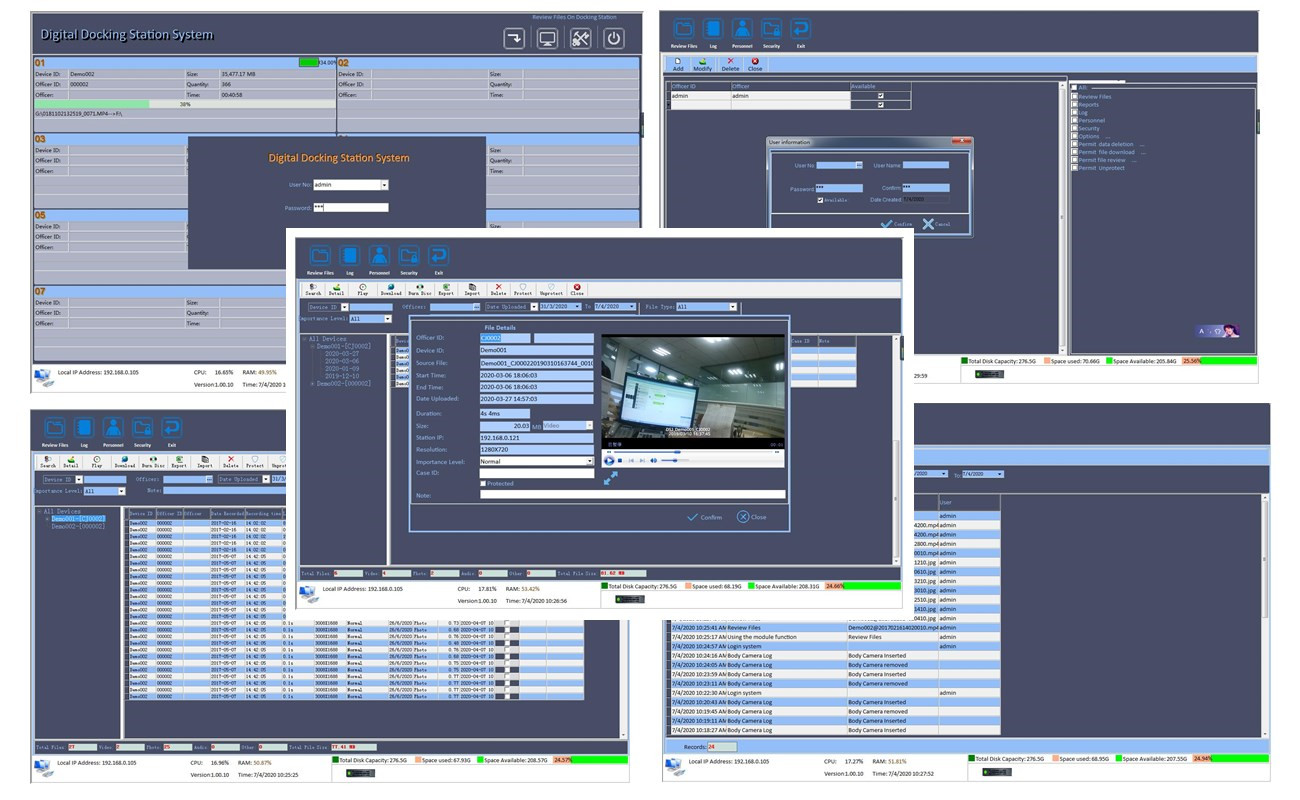

The system is using Browser/Server architecture to meet unique agencies' needs. All downloaded data is accessed
from connected PC or a local area network PC by Web Browser
▶Users & Groups
Each user is assigned custom permissions to access, view, download, reports, and delete uploaded data.
Authorized personnel may add important case details, attach additional documents and other files pertaining to
the case with recorded data.
▶Custom Incident Categories
Custom Incident Categories are added to the system to meet agencies' unique laws and policies.
Downloaded data can be tagged.
Downloaded sensitive data may be locked to keep unauthorized users' from access, data owner is also included.
Important data may be protected from automatic or manual deletion.
Easily locate desired recorded data using a single or multitude search parameters.
Authorized users may retrieve statistical incident data repot for specified date range.
▶Complete Audit Trail
Track each action performed by officers and users either at docking station or through Web Portal.
Downloaded data may be backed up to specified file servers via network (NAS). Admin may create custom policies
for the system to only backup important data to NAS or most storage servers.
Docking Station automatically purges general unprotected data from its storage at specified retention time periods.
▶Real-Time System Monitoring
Docking Station’s status information including internal storage status, disk status, online status, and data health is
monitored in real-time.
Docking Station automatically updates Body Worn Camera's time when devices is connected.
▶Scalable Local Storage
Easily manage and store data locally & eliminate monthly storage fees. System's storage may be expanded internally and externally.
|8 Ports Docking Station with Management Software|
|Hardware||Board card||8port USB3.0 board card|
|USB line||8 pcs 5P USB USB line|
|Network line||RJ45 network line|
|Wire crod||1.8M standard power cord, data line|
|Software encryption||Soft Dog HASP PRO(sublock)|
|Application software||Cammpro Electronic evidence management system||System operation log||System will generate a log for all operations.|
|Software encryption||Soft Dog||Data tagging||Important data can be annotated for easy query.|
|Time correction||Automatic time correction||Data locking||Important data can be locked to avoid accidental deletion.|
|Systematic framework||B/S or C/S framework||Positions corresponding||The body camera positions on docking station are exactly corresponding with the software interfaces.|
|Automatic index uploading||Automatic upload the generated index file to server database.||Input operation||Touch virtual keyboard,and also has interface to connect with a physical keyboard.|
|Multiple storage mode||Storage mode can be distributed, centralized, or mixed.|
|Automatic data clearing||Automatic clear the camera's memory after data were updated.||Storage space||Intelligent disk search function (System will automatically find storage space, except disk C and D).|
|Super-big file uploading||The system supports to transfer, download and play large file which over 2G.||Processing of Insufficient storage||When the data is full in current memory disk, it will automatic enter into another one.|
|Information-reading||Automatically read the time, date, device ID, police ID, remaining memory and remaining battery capacity information in the body camera.||Storage space display||The remaining space of the docking station can be viewed in real time on the online management status bar.|
|Department management||Administrator has the authority to add, modify and delete the department information, but ordinary users have no.||File safety||Only administrator with right password has the authority to delete file, others have no permission.|
|Police management||Administrator has the authority to add, modify and delete the police information, but ordinary users have no.||Data export||Only administrator with right password has the authority to export the data in management device, others have no permission.|
|Device management||Administrator has the authority to add, modify and delete the device information, but ordinary users have no.||Breakpoint resume||Has breakpoint resume upload function to prevent data loss|
