TM80 Headlight Recorder

  • TM80 Headlight Recorder
  • TM80 Headlight Recorder
  • TM80 Headlight Recorder
  • TM80 Headlight Recorder
  • TM80 Headlight Recorder
  • TM80 Headlight Recorder
  • TM80 Headlight Recorder

Share:

Overview:

This recorder also can be referred to as Portable Recorder, it is a video record-able headlight produced under the background of increasing demand in customers working fields after several years application in railway industry.

Not only can it be used during night, but it can take photos as evidence regarding some particular operation contents depending on users needs, which is beneficial to the process management and field management of front-line station. The headlight recorder was specially designed for railway industry.

Application scope:

Providing supports of single-person mobile lighting and video recording of the content and process at on-site work to stations and railway engineering company night operation,  maintenance and accident repairs in railway industry public service, electrical service, car service, vehicles, etc.


√ Support lightning and recording together.

Low power comsumption (6.5 hours Continuous Recording and Lightning).

 Sun-level illuminance for special usage scenario.

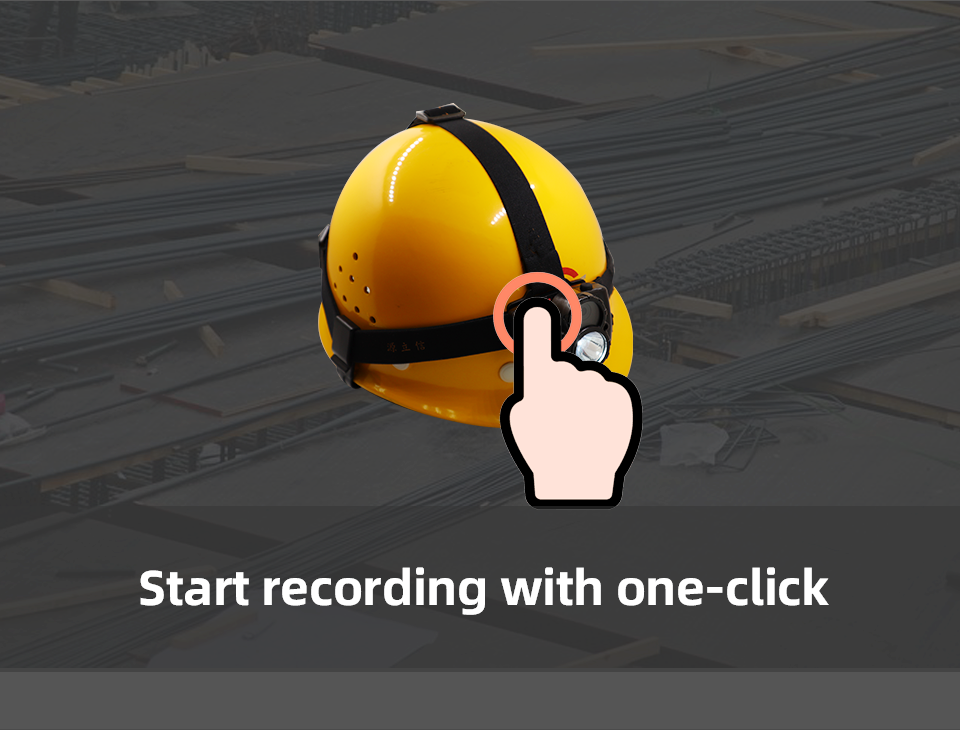

 One-click to start recording immediately, in case of missing any unexpected moment.

High class Ambarella chipset ensures high quality video resolution.

Support snapshot when video is recording.

√ PC bulletproof rubber case with strong impact resistance to against harsh working environment.

Support working under rainy and snowing days.




TM80 Headlight Recorder

TM80 Headlight Recorder

TM80 Headlight Recorder

TM80 Headlight Recorder

TM80 Headlight RecorderTM80 Headlight Recorder

TM80 Headlight Recorder

TM80 Headlight Recorder

TM80 Headlight RecorderTM80 Headlight Recorder

TM80 Headlight Recorder

Performance Features

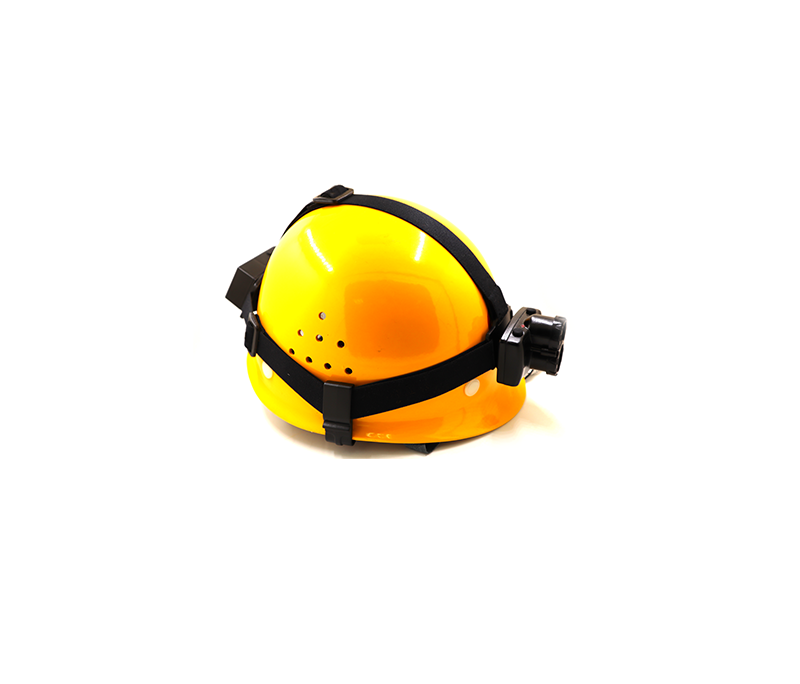

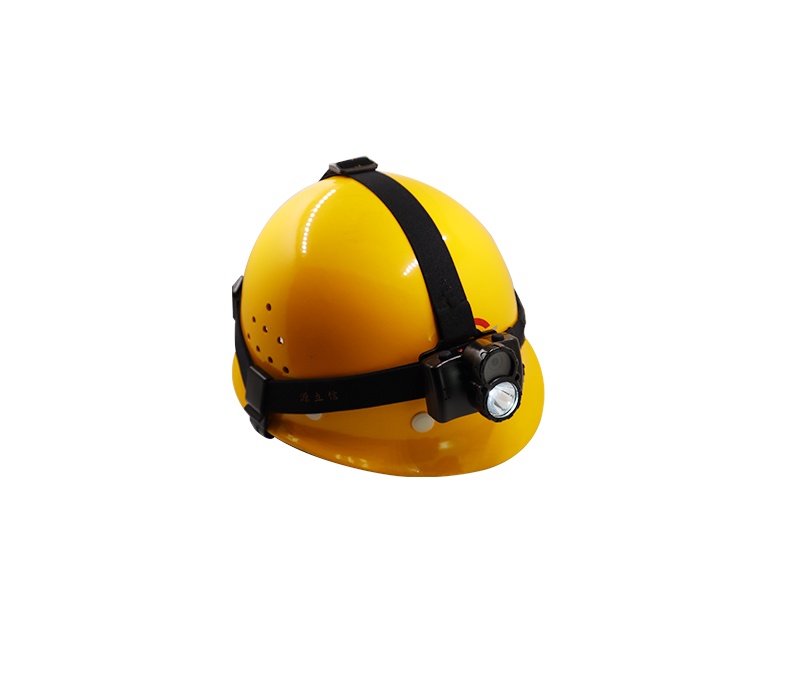

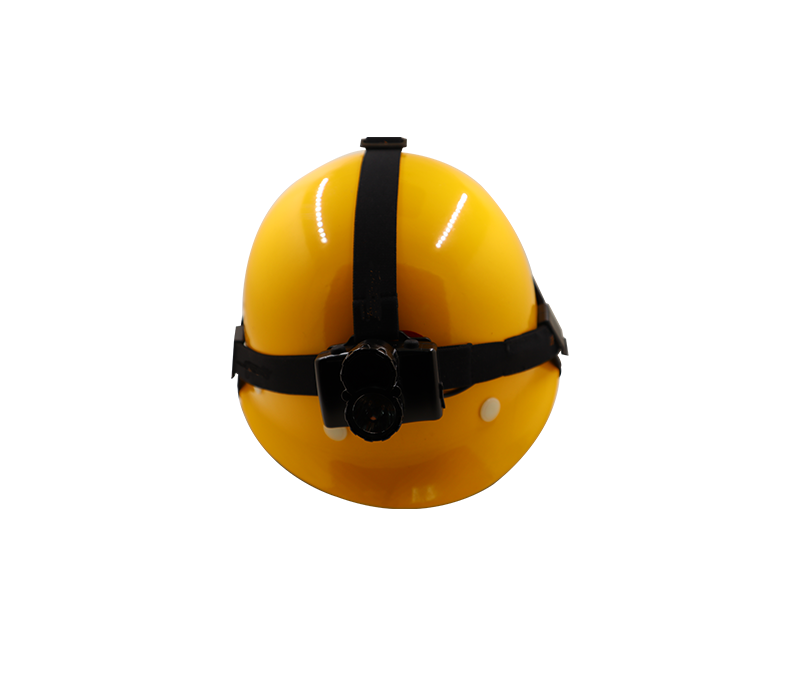

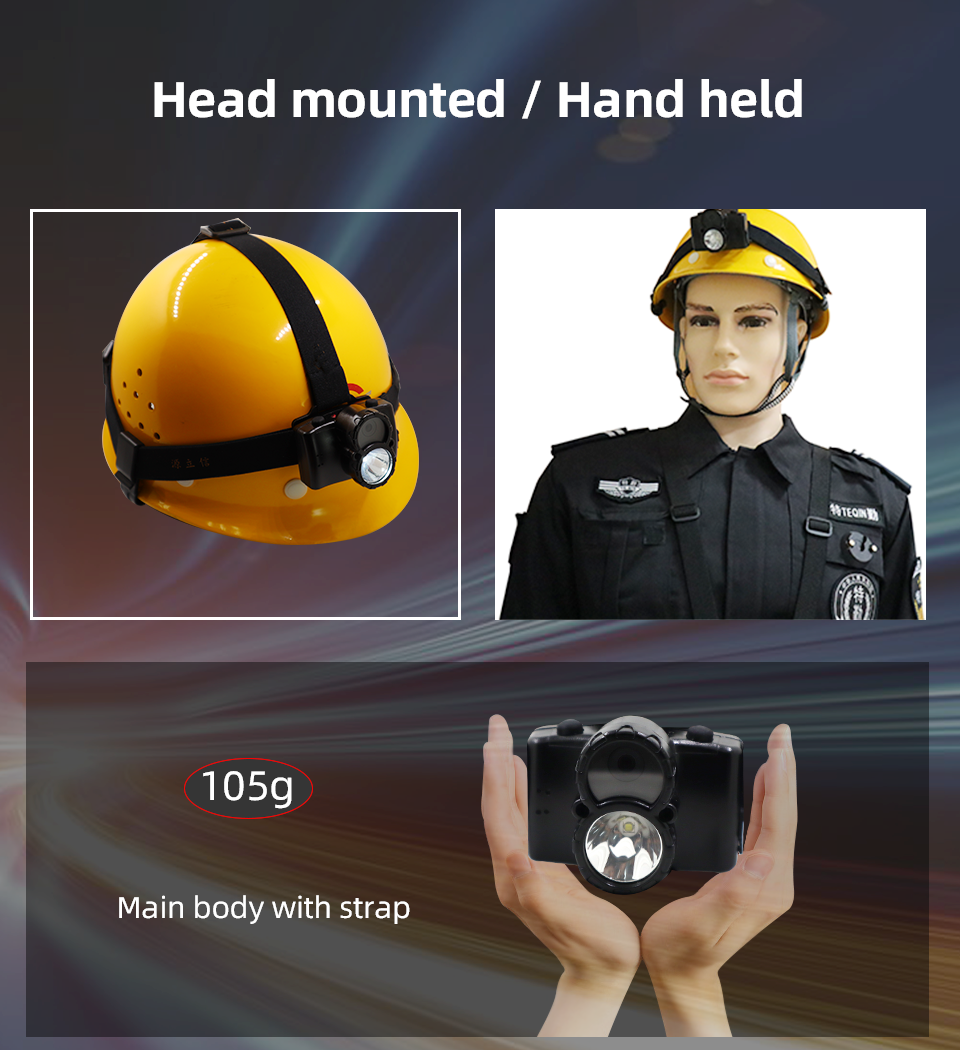

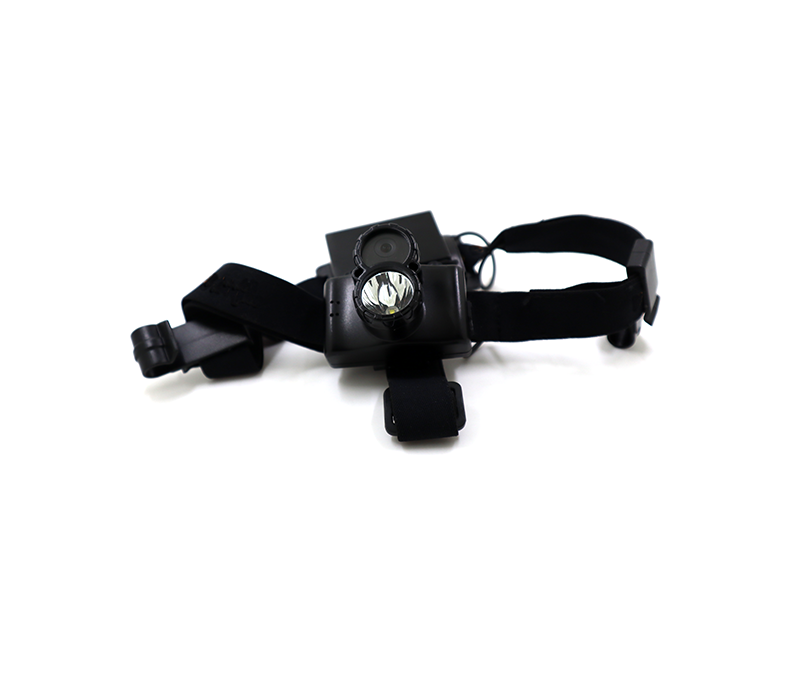

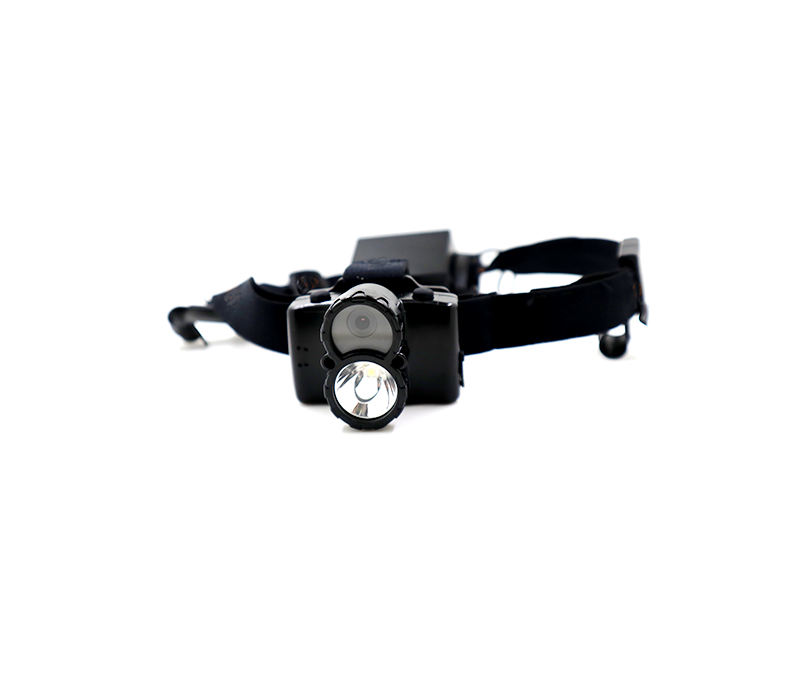

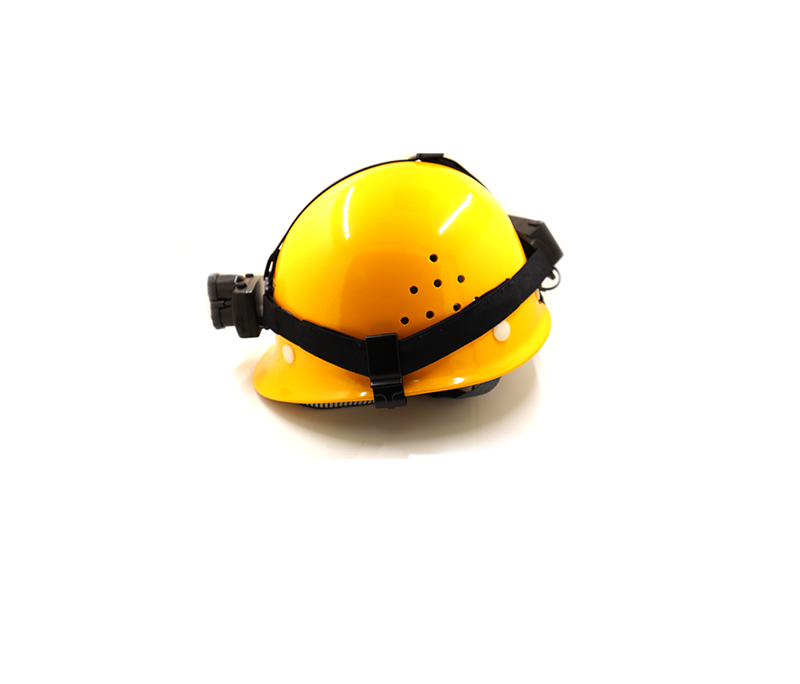

l  The headlight recorder has 2 functions of lighting and recording, users can wear it on helmet or hand-held.

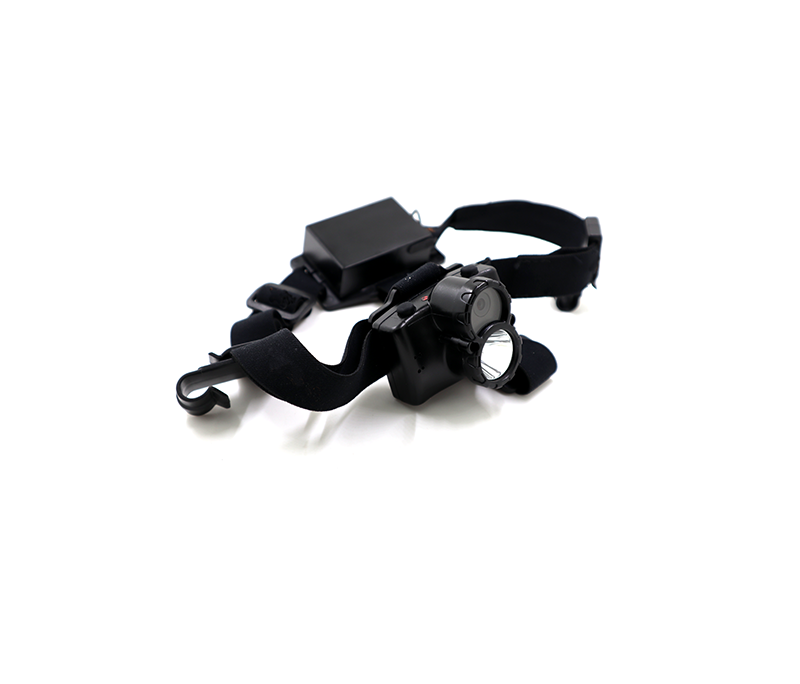

l  The recorder applies ergonomics to the structure, the power supply and body camera are separately mounted on headset, this ensured that user wont feel one-way load when wearing this headlight recorder, thereby reducing users fatigue of wearing the equipment.

l  3 watts of American CREE solid LED is adopted as the light source of the headlight recorder, which is high light efficiency, long life, stable and reliable performance.

l  The lighting function has 2 options of working light and bright light. Use working light to provide lighting support when recording at a close distance, and bright light is for lighting support.

l  We used advance technology to the light distribution of the headlight recorder, which realized lighting sun-level light, ensuring the range and brightness of the headlight recorder.

l  We use a simplest operation method to the recorder that only need to press recording key when need to record, then the headlight recorder will directly record and save the video; to stop recording, only need to press the recording key again, the video will be saved automatically.

l  The main operation system is the advanced American Amberalla solution, image sensor is also produced by American OV, which ensures high quality resolution 1280×720 30P, the image clarity and video quality

l  Recorder uses high-energy memory-free polymer lithium-ion battery pack with large capacity, the battery box can be replaced at any time, thus the recorder's endurance operation ability is fully guaranteed.

l  The entire headlight recorder is waterproof that supports working under rainy and snowing days.

l  The case of recorder is PC bulletproof rubber, which has strong impact resistance to against harsh working environment.

l  After discussing repeatedly with the technical and market team, the operation has been humanized in firmware developing, which allows users to clearly understand the recording status, ensuring the reliability of recording even though users cant watch the recorder when they wearing the headlight recording on helmet. This not only represents our attitude of responsible for customers, but also one of our efforts to provide better service to railway stations during the process of technology innovation.



None

Parameters

No.ItemUnitValue
1Voltage   RatingV4.2
2LightingWorking   voltageV3.7
Work   photo-currentmA200
Strong   photo-currentmA420
3RecordingSystemAmbarella
SensorOmni   Vision
Video   resolution1280*720   30P
4Continuous   working durationWork   lighth20
Strong   light6
Work   light & recording6.5
Strong   light & recording3.5
5Power   supplyBattery   capacitymAh3200
Backup   battery capacitymAh3200
6WeightMain   recorder body(include string)g105
Battery   box of recorderg76
7DimensionMain   recorder bodymm65*48*49
Battery   box of recorder61*41*22
8WaterproofIP65
