Overview
Police body camera often utilized by law enforcement to record their interactions with the public or gather video evidence at crime scenes.
Nowadays it's also widely used in military, public service and citizen surveillance.

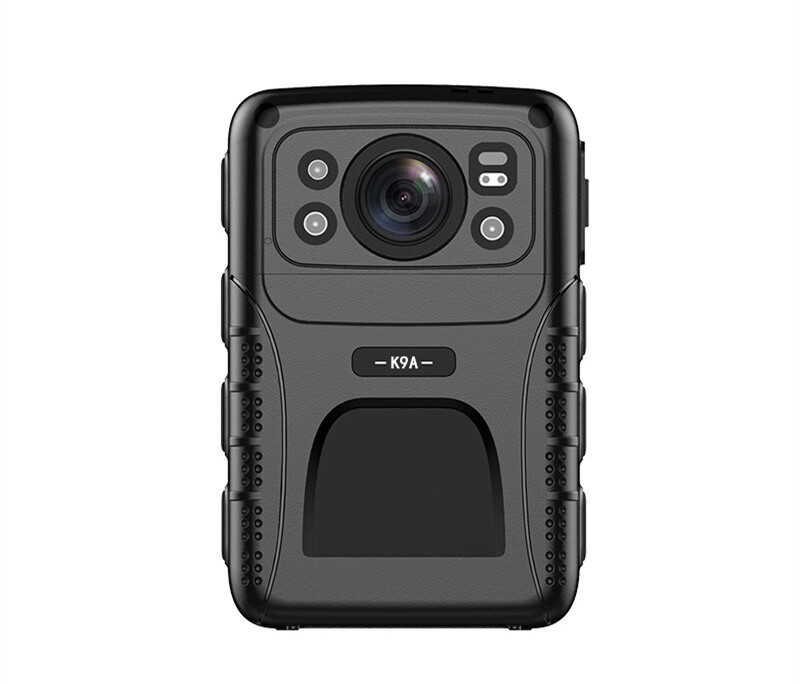

K9A Body Worn Camera is the latest product developed by CammPro, it has mutiple latest features to meet a variety of application requirements
Bullet Points of Cammpro K9A Body Worn Camera
▶ Ambarella H22 High-Class Chipset, OV4689 Sensor.
▶ Support advanced video codec, the equivalent quality video only occupied 1/2 space of H.264.
▶ Removable battery, support battery replacement under constant power.
▶ Super low power consumption, single battery supports 11 hours recording at 480P.
▶ 134° HD wide-angle lens.
▶ The maximum video quality is up to 2560*1440 30FPS.
▶ The maximum photo pixel is up to 40M（6144*3456）.
▶ Support one-click to start audio/ video recording.
▶ 2.0 inch HD color screen with resolution 960*240.
▶ Built-in 32GB TF card, 64GB or 128GB for option.
▶ Support satellite positioning GPS.
▶ Built-in G-Sensor.
▶ Support Electronic Image Stabilization (EIS).
| Basic Hardware Parameters | |
| Model | K9A |
| CPU | Ambarella H22A35M |
| Sensor | OV4689 1/3”CMOS Sensor 4Mpixel |
| DDR3 | 4GB (DDR3) 256*16bit |
| Lens | HD wide-angle lens 6G |
| Screen | 2.0” LCD 960 x 240 pixel color screen |
| Video Parameters | |
| Shooting Angle | 134° field of view |
| Video Resolution | 2560x1440P/30fps, 2304x1296P/30fps, 1920x1080P/30fps,1280X720P/30fps, 848x480P/30fps |
| Video Format | MP4 |
| Video encoding format | H.264/H.265 |
| Video encoding bit rate | 2.5-12 Mbps |
| One-click Recording | Support one-click to enable video/audio recording when camera is power off |
| Start/stop recording notification | Support Audio/LED/Vibration notification signal |
| Pre-recording | Support pre-recording on/off, 60s of pre-recording is available |
| Post Recording | Support off, 5s, 1min, 10min, 40min Post Recording |
| Video Quality | Super fine/ normal |
| Split Time | 1min/5mins/10mins/15mins |
| Burst Shoot | Support taking photos while recording video |
| Watermark | Support Device ID, USER ID, Time & Date, GPS Coordinates |
| AES Video Encryption | Support |
| Motion Detection | Support |
| Loop Recording | Support |
| Photo Parameters | |
| Photo Resolution | 4M(2688*1512)/8M(3264*2448) /14M(4384*3288) /16M(4608*3456) /21M(6144*3456) /36M(8000*4500) /40M(8000*4920) |
| Photo Format | JPG |
| Continuous shooting | Continuous shooting 2/3/5/10 |
| Timed shot | Support 5s/10s |
| Audio Parameters | |
| Audio Format | AAC |
| Audio bit rate | 128k bps |
| Display / Playback Parameters | |
| Fast forward speed | 2X, 4X, 8X, 16X, 32X, 64X |
| Rewind speed | 2X, 4X, 8X, 16X, 32X, 64X |
| Slideshow | Support |
| Screen Brightness | ≥500cd/m2 |
| Screensaver | Support 30s/1min/3mins/5mins |
| Battery Parameters | |
| Battery Type | Removable 2300mAh lithium polymer battery |
| Charging Time | Less than 150 mins |
| Battery Life | 11 hours (1280x720P/30fps) or 8 hours (1920x1080P/30fps) |
| Battery Indicator | Support |
| Low Battery Alarm | Support, screen prompt and alarm |
| Other Functions | |
| Night Vision | Support 10 meters IR Illuminator |
| Auto IR | Support Manual / Auto enable infrared night vision |
| Satellite positioning | Built-in GPS receiver |
| G-Sensor | Built-in, Automatic video recording by shock or fall detection |
| EIS Image Stabilization | Support |
| Video recording while charging | Support |
| Key File Tag | Support |
| Voice Prompts | Support |
| Extra Long Standby | Support long standby for over 30 days |
| Vibration Motor | Support |
| Automatic shut-down | 30s/1min/3mins/5mins |
| Password Protection | User can view the files only but cannot delete them, only administrator can manage them with right password. |
| Boot time | Less than 3s-5s |
| Storage | Built-in non-removable 32GB (or 64GB or 128GB optional) |
| Data Connection | Mini USB 2.0 (Charging/PC data transmission) |
| Power Supply | 5V/2A |
| Indicator | Support on/off |
| Microphone | 42dB -/2dB high quality microphone |
| Speaker | Built-in 1W speaker |
| Language | English, Ukrainian (customizable) |
| Support System | Windows XP, Windows Vista, Windows7, Windows 8.1, Windows 10 |
| Dimension | 85mm*55mm*29mm |
| Weight | ≤145g (without clip) |
| Operating Temperature | -30°С...+55°С |
| Storage Temperature | -40°С...+80°С |
| Shock-proof Level | Falling from a height of 150 cm without damage |
| Water/dust-proof level | IP66 |
| Warranty | 2-years warranty |

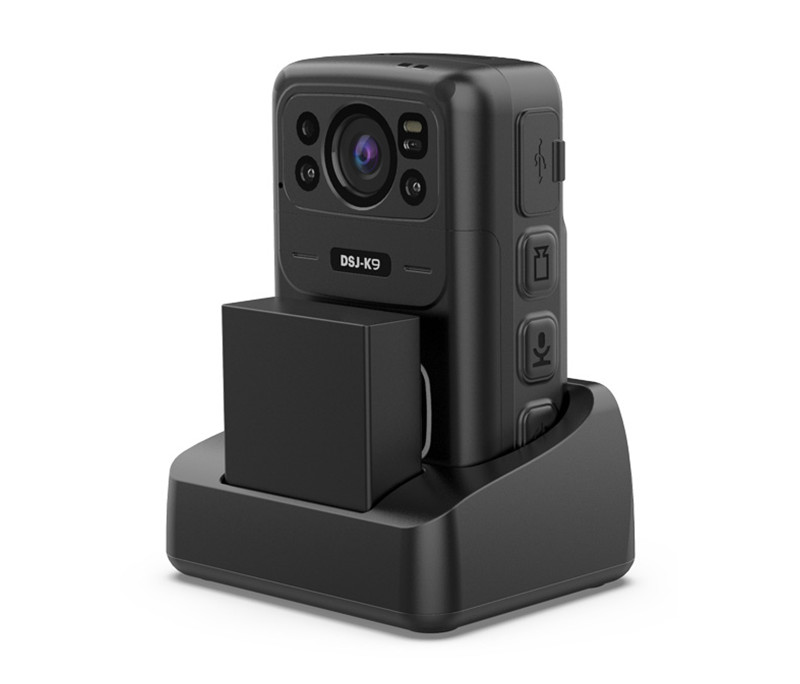

| Standard package contents | Body worn camera, two 2300mAh lithium polymer batteries, single charging base with support for simultaneous charging of the camera and additional battery, clip mount, charger, USB-cable, installation CD, user manual. |
| Optional accessories | Plastic shoulder clip, leather shoulder mount (need to customize the connector), vest belt, car charger, car mount, 8- and 10-port docking station, 8-port docking station with display, 20-port docking station with display and 4TB memory, software. |
