Overview

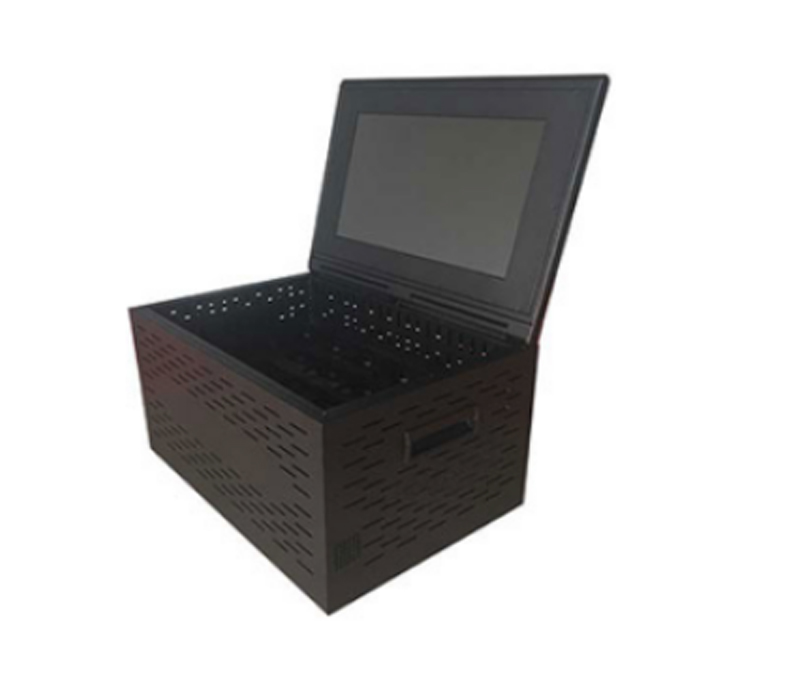

MCT-i904 Docking Station use high-performance low-power motherboard, processor and hard drive with high, stable performance.
It supports 20 body cameras upload data at the same time.
● Embedded operating system
● Inside with a large-capacity hard disk storage space to storage data
● Web management system
● Support Microsoft Azure cloud for storage video files.
Bullet Points of MCT-i903 Docking Station

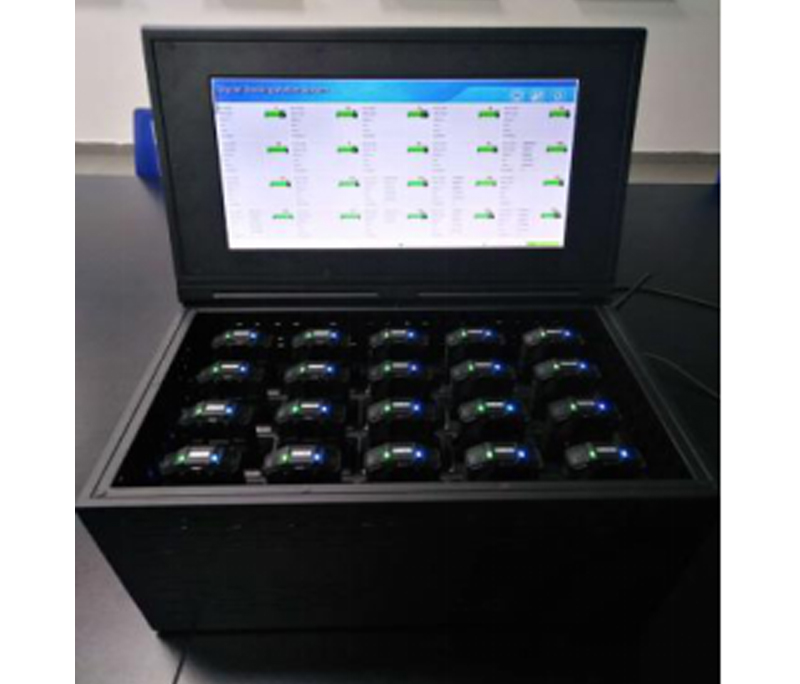

▶Visual Download Status
Docking Station displays data download status, number of files downloaded, and estimated download time from
each connected body worn camera.
▶Camera Data Purge
Docking Station automatically purges all recorded data from connected BWC after all data has been downloaded
from the device.
▶Resume Download
If download from BWC to docking station is interrupted, the docking station will resume download from where it
last left off when the camera is reconnected.
▶Portal
The system is using Browser/Server architecture to meet unique agencies' needs. All downloaded data is accessed
from docking station or a local area network PC by Web Browser
▶Users & Groups
Each user is assigned custom permissions to access, view, download, reports, and delete uploaded data.
▶Case Information
Authorized personnel may add important case details, attach additional documents and other files pertaining to
the case with recorded data.
▶Custom Incident Categories
Custom Incident Categories are added to the system to meet agencies' unique laws and policies.
▶Video Tagging
Downloaded data can be tagged.
▶Locked Data
Downloaded sensitive data may be locked to keep unauthorized users' from access, data owner is also included.
▶Protected Data
Important data may be protected from automatic or manual deletion.
▶Advanced Search
Easily locate desired recorded data using a single or multitude search parameters.
▶Statistical Reports
Authorized users may retrieve statistical incident data repot for specified date range.
▶Complete Audit Trail
Track each action performed by officers and users either at docking station or through Web Portal.
▶Data Backup
Downloaded data may be backed up to specified file servers via network (NAS). Admin may create custom policies
for the system to only backup important data to NAS or most storage servers.
▶Retention
Docking Station automatically purges general unprotected data from its storage at specified retention time periods.
▶Real-Time System Monitoring
Docking Station’s status information including internal storage status, disk status, online status, and data health is
monitored in real-time.
▶Time Synchronization
Docking Station automatically updates Body Worn Camera’s time when devices is connected.
▶Scalable Local Storage
Easily manage and store data locally & eliminate monthly storage fees. System's storage may be expanded internally and externally.
Packing: Wooden case
Packing Size: 60*60*160CM
Shipping cost: We are committed to keeping shipping costs as low as possible. The shipping charges are calculated based on the ordered products.
Shipping method: Express for sample order, air transportation for mini order, sea transportation for bulk order.
| HARDWARE | |||
| Item Number | I904 | ||
| Housing | Standing, with anti-static surface. Integrated independent-use design; | Network Cable | 2 meters |
| Size | Wooden case, 60*60*160CM | Power Cable | Industrial power, Rated output 400W |
| Number of connections | 20pcs body camera simultaneous connection ( Support managing more than 20pcs body cameras in batches.) | Working environment | -20℃ - +80℃ |
| Connector | USB | Storage humidity | 10% - 90% |
| Hub | 20 ports industrial HUB, Independent identification, independent power supply (1.2A each). | Power cable | Options: CN, EU, UK, UL |
| Screen | 15.6 inch LCD touch screen, Resolution 1920*1080 | Network interface | RJ45 standard input |
| Screen type | 15.6 inch capacitive screen | Power supply mode | Automatic bivolt 110-220V AC |
| Main board | Industrial Gigabyte Mainboard | Acquisition system | Meet the Ministry of Public Security 2015 standard acquisition system installation CD |
| CPU | Sixth Generation Intel G4400 or higher | Platform system | WIN7 32/64 bit system |
| Storage | 4G DDR3 64G solid-state disc | Fuse | 220V 10A fuse |
| Hard disk | Removable hard disk box with lock, Standard 4T | Charge | Automatic charging function |
| SOFTWARE | |||
| Application software | Cammpro Electronic evidence management system | System operation log | System will generate a log for all operations. |
| Software encryption | Soft Dog | Data tagging | Important data can be annotated for easy query. |
| Time correction | Automatic time correction | Data locking | Important data can be locked to avoid accidental deletion. |
| Systematic framework | B/S or C/S framework | Positions corresponding | The body camera positions on docking station are exactly corresponding with the software interfaces. |
| Automatic index uploading | Automatic upload the generated index file to server database. | Input operation | Touch virtual keyboard,and also has interface to connect with a physical keyboard. |
| Automatic data clearing | Automatic clear the camera's memory after data were updated. | Storage space | Intelligent disk search function (System will automatically find storage space, except disk C and D). |
| Super-big file uploading | The system supports to transfer, download and play large file which over 2G. | Processing of Insufficient storage | When the data is full in current memory disk, it will automatic enter into another one. |
| Information-reading | Automatically read the time, date, device ID, police ID, remaining memory and remaining battery capacity information in the body camera. | Storage space display | The remaining space of the docking station can be viewed in real time on the online management status bar. |
| Department management | Administrator has the authority to add, modify and delete the department information, but ordinary users have no. | File safety | Only administrator with right password has the authority to delete file, others have no permission. |
| Police management | Administrator has the authority to add, modify and delete the police information, but ordinary users have no. | Data export | Only administrator with right password has the authority to export the data in management device, others have no permission. |
| Device management | Administrator has the authority to add, modify and delete the device information, but ordinary users have no. | Breakpoint resume | Has breakpoint resume upload function to prevent data loss |
