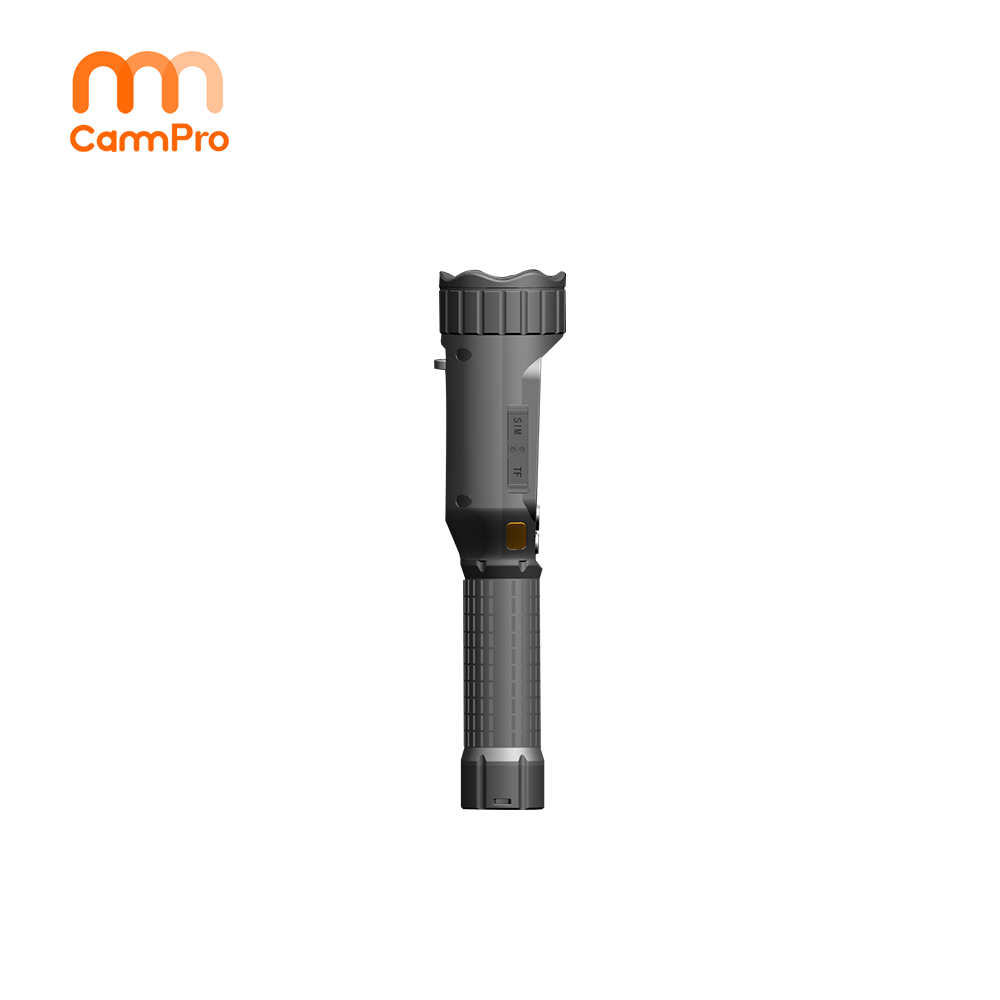

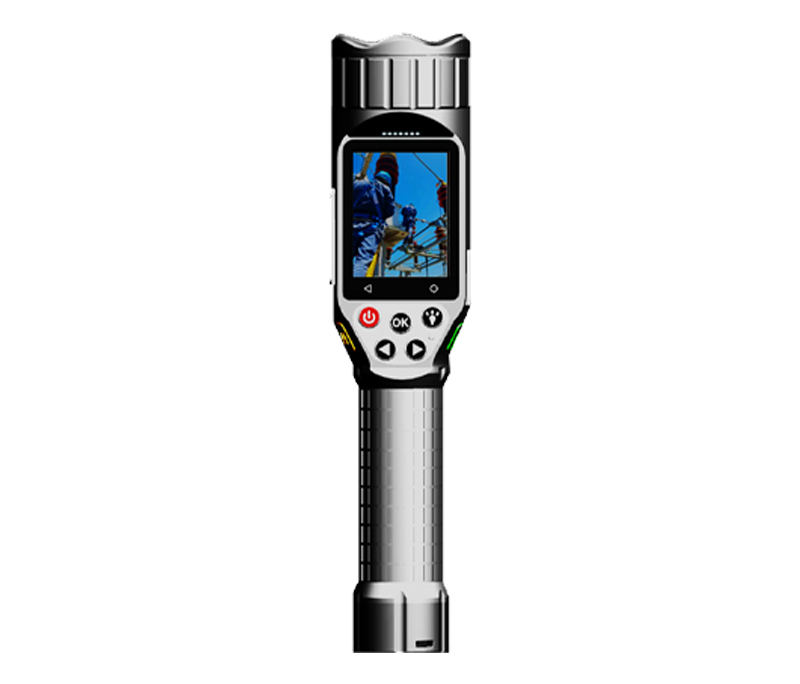

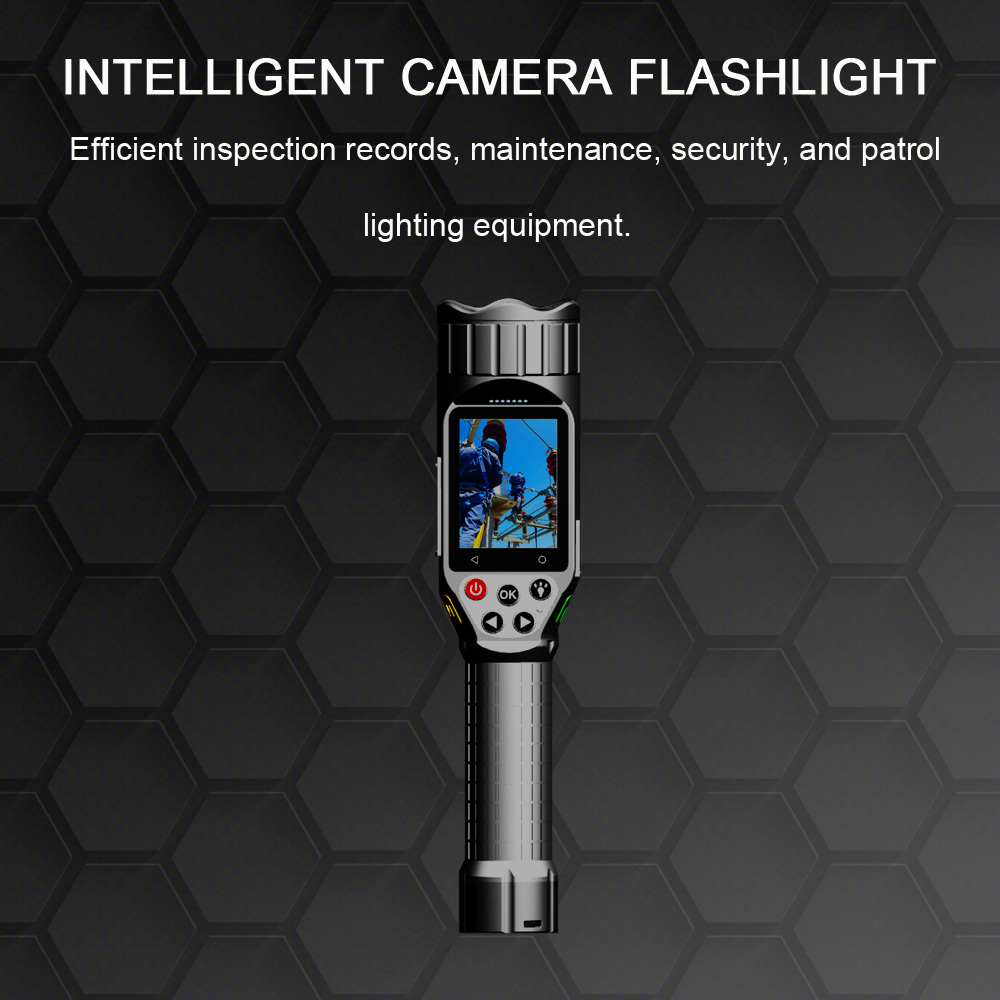

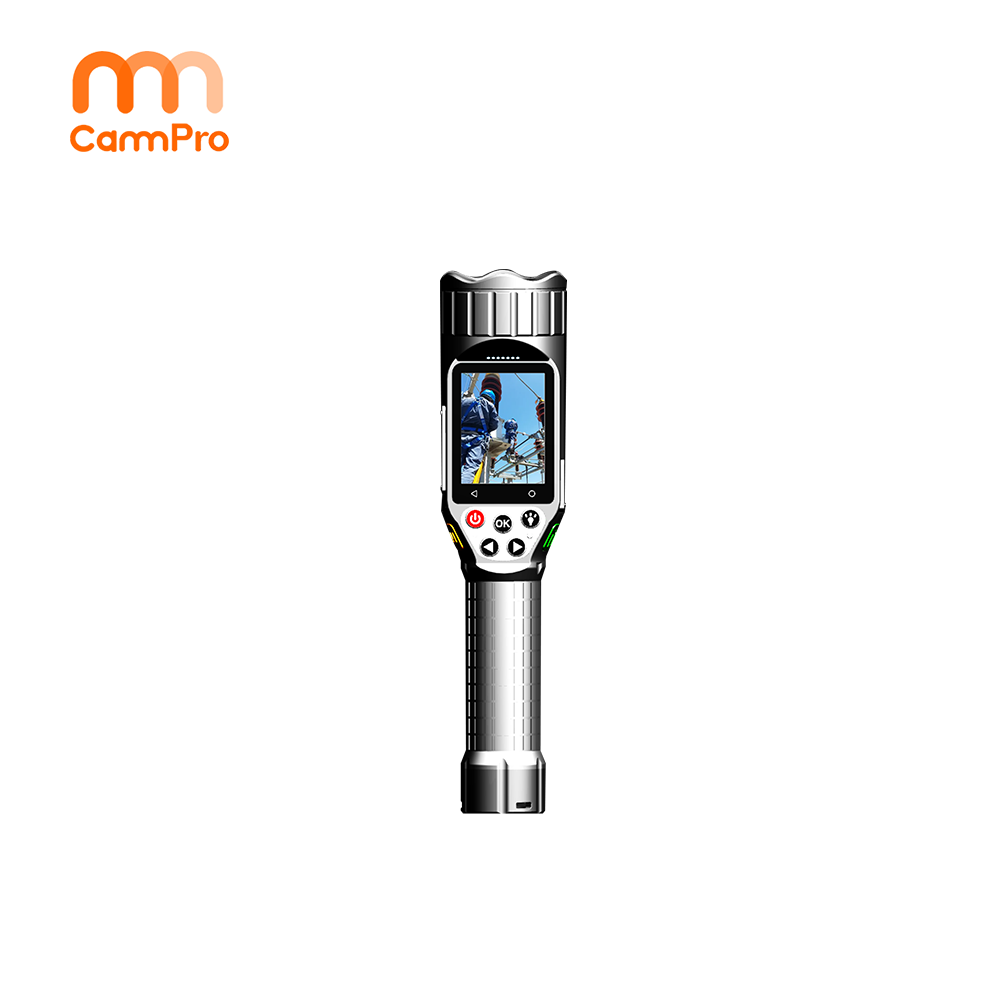

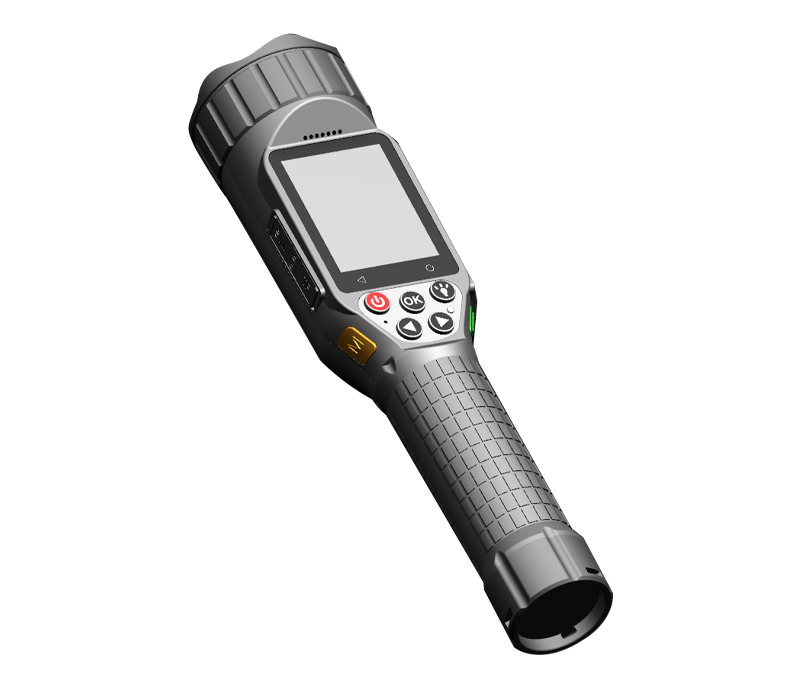

The T8 torch light video recorder is suitable for railway, electric power, oil field, machinery, petrochemical, gas maintenance, military/ police, industrial & mining enterprises and other workplaces, which is a practical patrol recording, maintainance, security, patrol and lighting equipment.

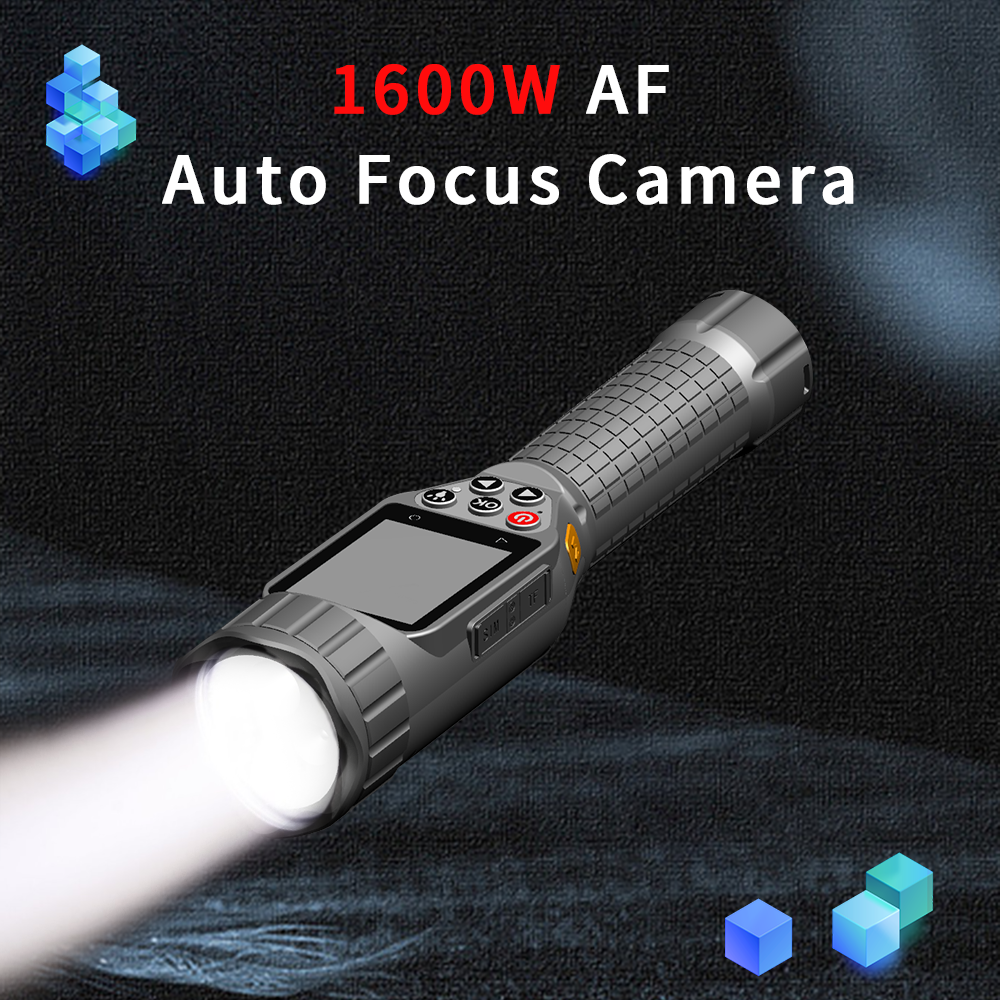

▶ 8 megapixel camera, support auto focus.
▶ Up to 2688* 1512P 30fps recording, 48M resolution photography.

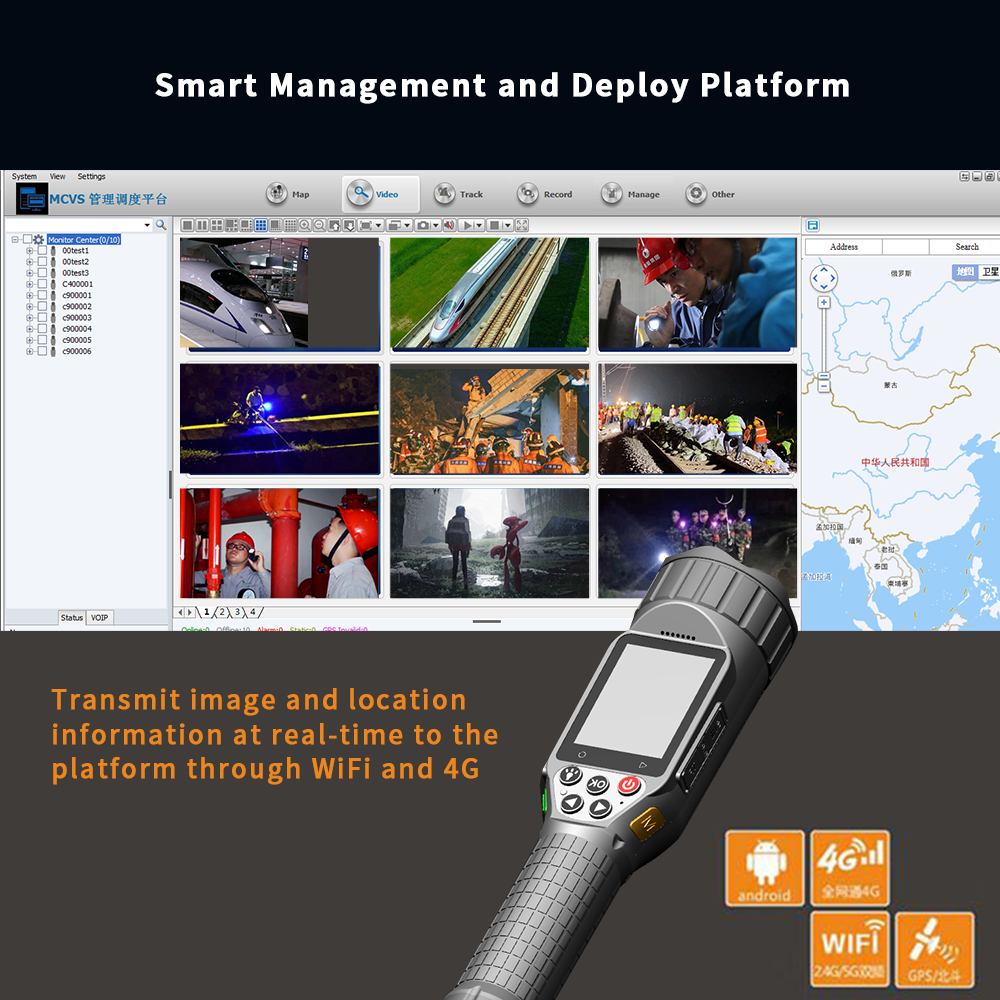

▶ Support WiFI/4G/Bluetooth/H.265

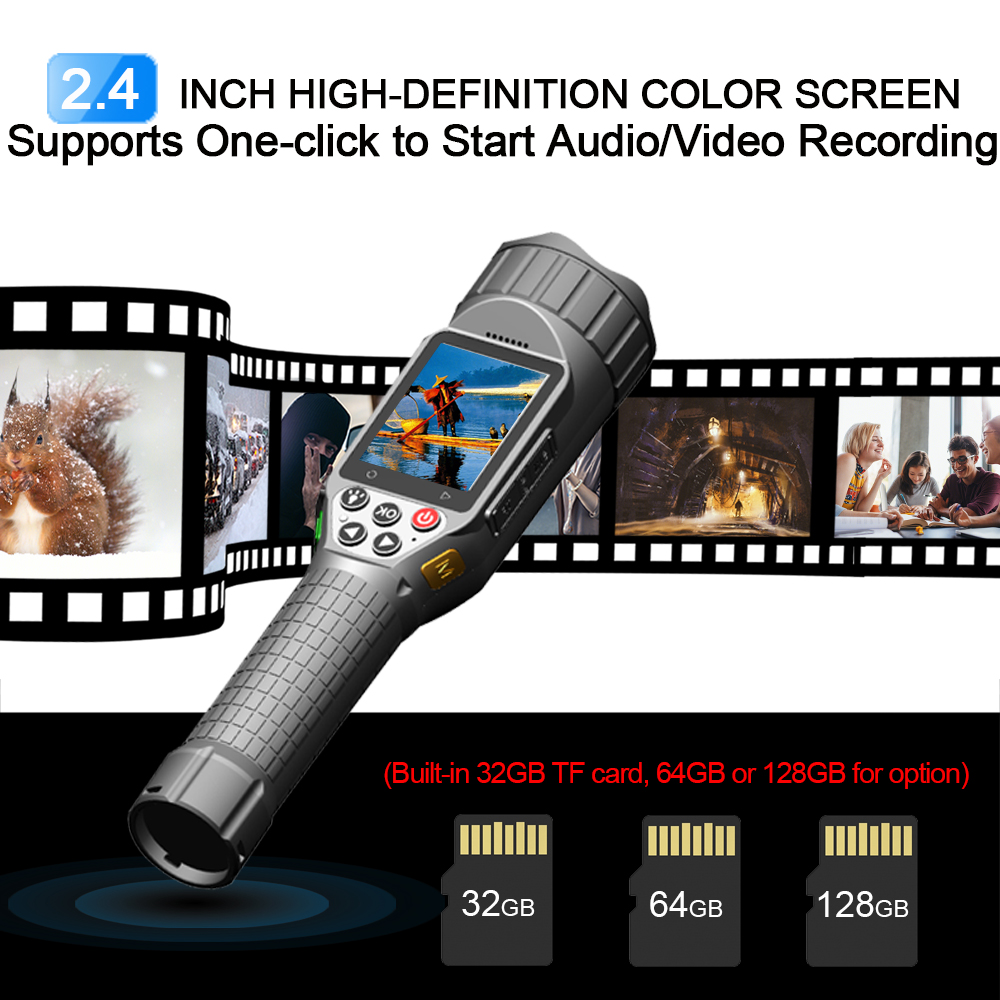

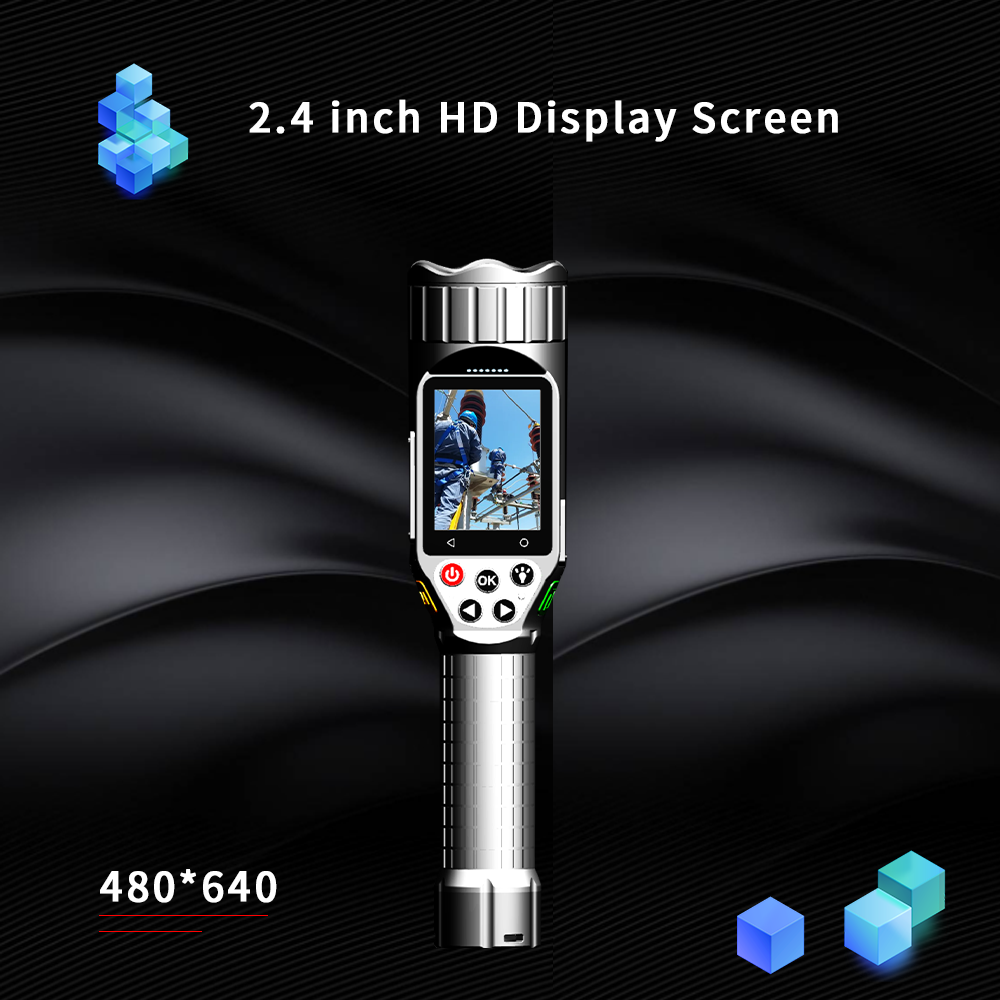

▶ 2.4 inch 480*640 pixel hd touch screen display.
▶ Total 9200mAh battery capacity(6000mAh+built-in 3200mAh), support longer working time.
▶ Built-in 3200mAh lithium battery. It can be used even after unplugging the main battery.

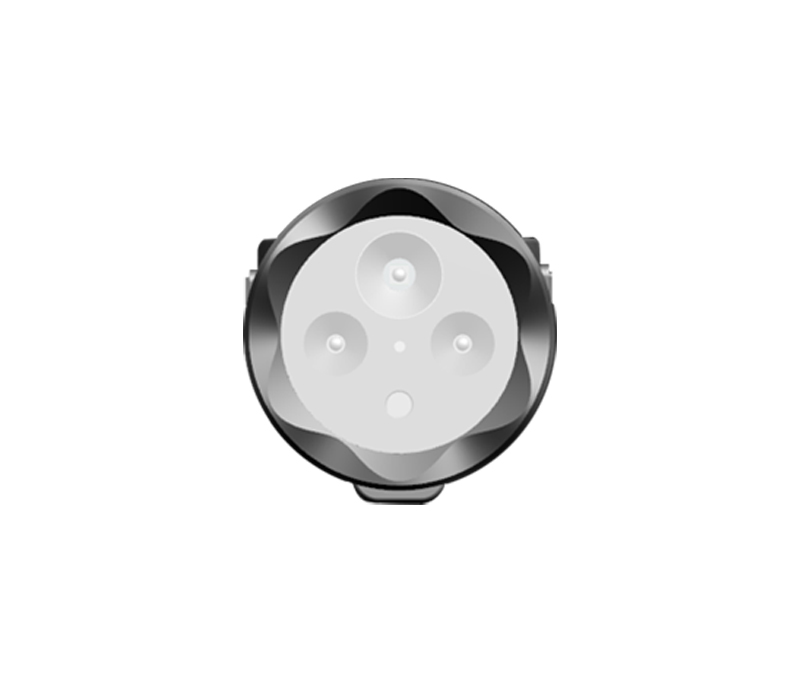

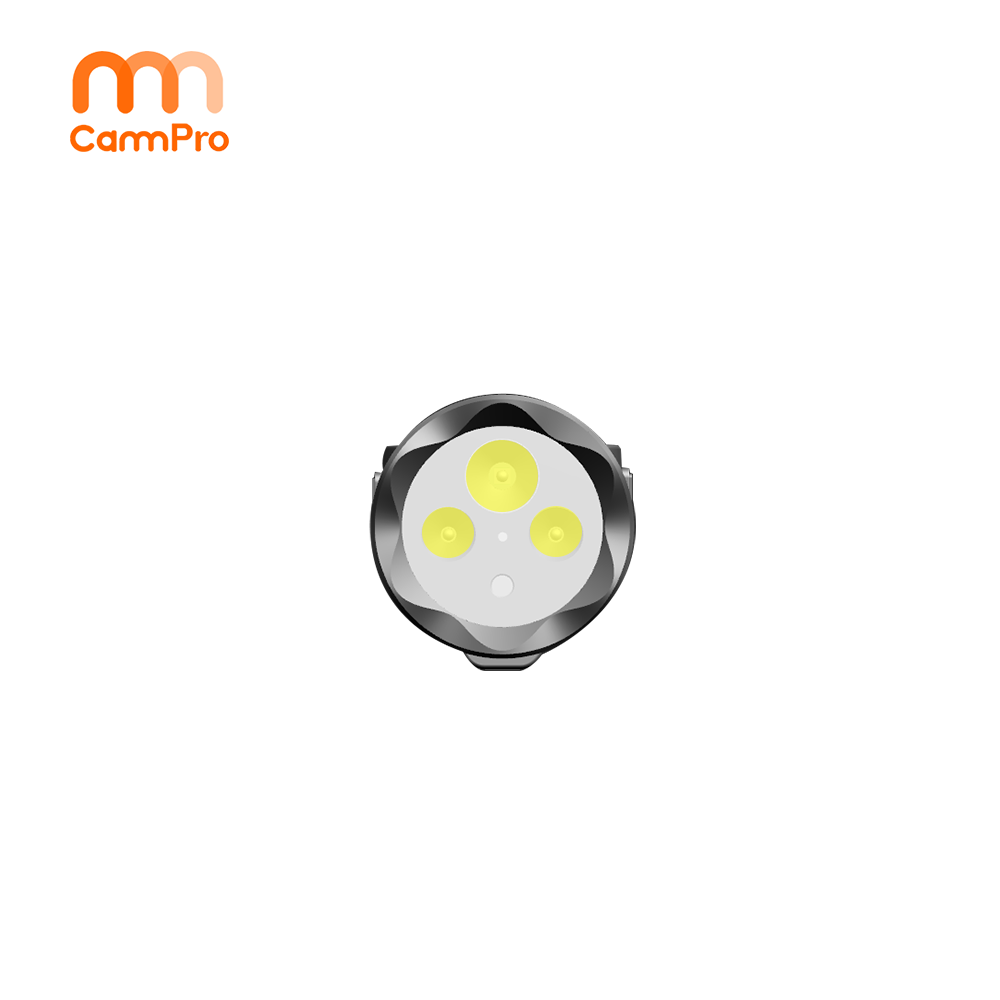

▶ Support high-brightness spotlight flashlight mode and high-brightness floodlight photography mode for lighting, which can be
used in the shutdown state.
| Parameters | |||||||
| Basic Hardware Configuration | Light | ||||||

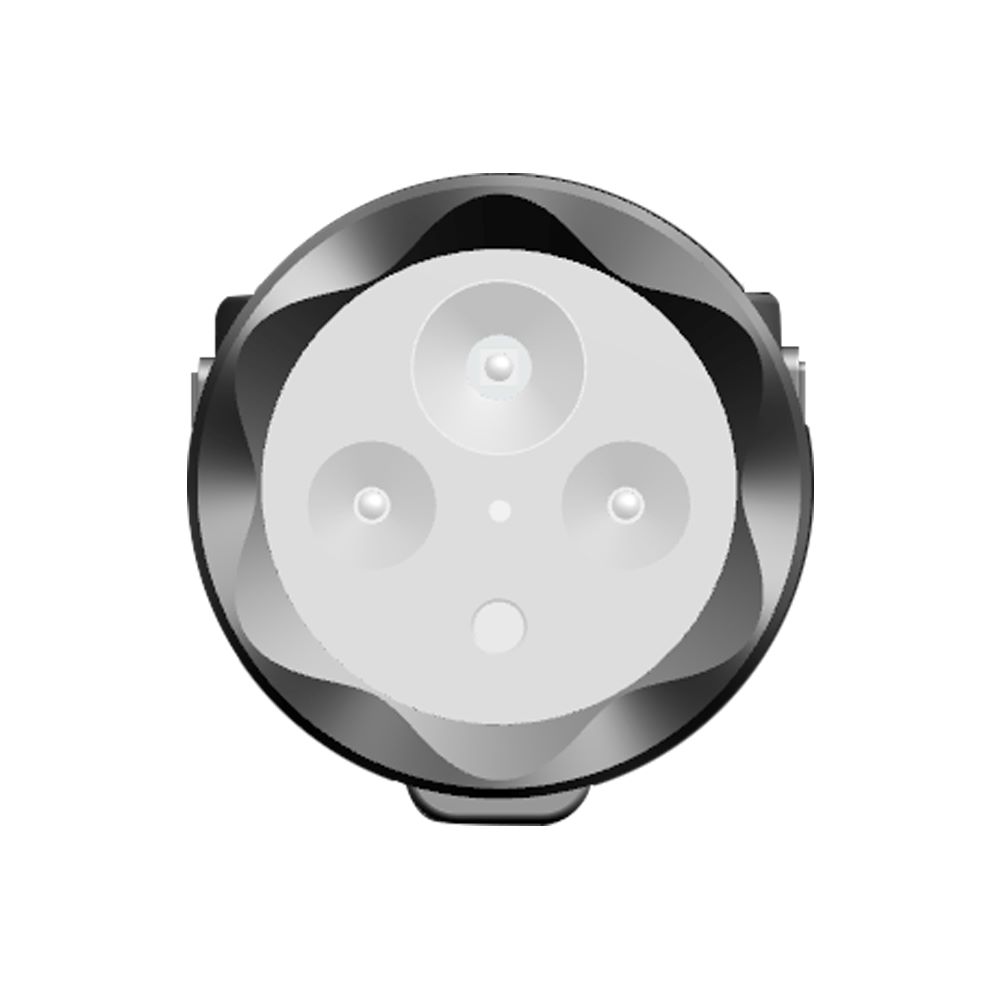

| Hardware Platform | SDM450 8Cores/ARM64 | Spotlight | Support flashlight spotlight mode for normal lighting; 125lm | ||||
| Sensor | OV8858 | Floodlight | Support flashlight floodlight mode for close inspection; 70lm | ||||
| DDR | 2GB | Fill light | Support for supplementary lighting during photography | ||||
| Flash | 16GB | Laser Light | Support laser positioning and shooting targets | ||||
| Network | Indicator Light | 1 light hole, 2-color indicator light | |||||
| 4G | LTE-FDD B1/B3/B5/B7/B8 | Battery | |||||
| LTE-TDD B34/B38/B39/B40/B41 | Charge | 5V/2A（built-in battery 500mAh, main battery 1 5A） | |||||
| WCDMA B1/B8 | Main Battery Capacity | Single 26800 battery 6000mAh/3.7V | |||||
| TD-SCDMA B34/B39 | Charging Time | 6 hours | |||||
| EVDO/CDMA BC0 | Built-in Battery Capacity | 3200mAh/3.7V | |||||
| GSM 900/1800MHz | Charging Time | 8 hours | |||||
| WiFi | Wi-Fi 802. 11/b/g/n 2402MHz ~2482MHz | Continuous Recording Time | Main battery 24 hours+built-in battery 12 hours (standard definition) | ||||

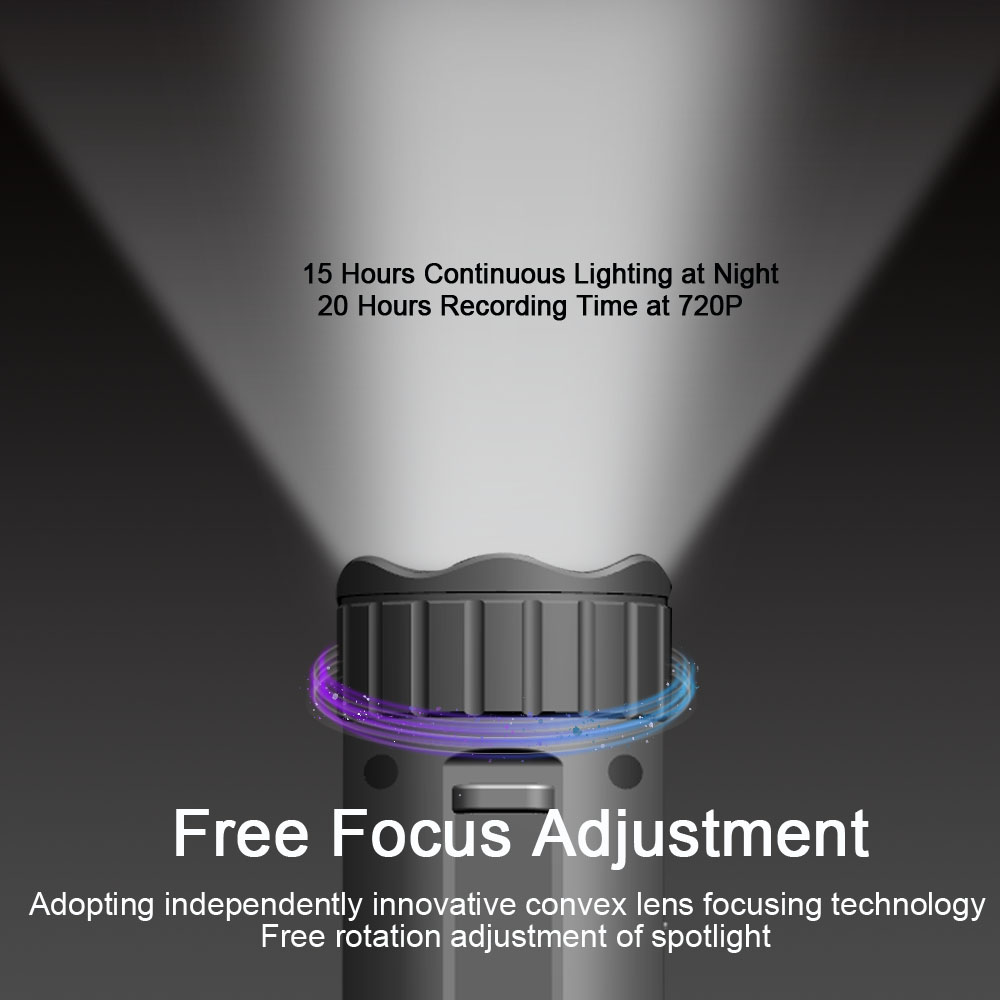

| BT | 2. 1+EDR/3.0/4. 1 LE/4.2 BLE | Continuous Lighting Time | 15 hours | ||||
| GNSS | GPS: 1575.42MHz±1.023MHz GLONASS: 1597.5MHz ~ 1605.8MHz BeiDou: 1561.098MHz±2.046MHz | Others | |||||
| Configuration | Data Interface | Type C For charging and transmitting data | |||||

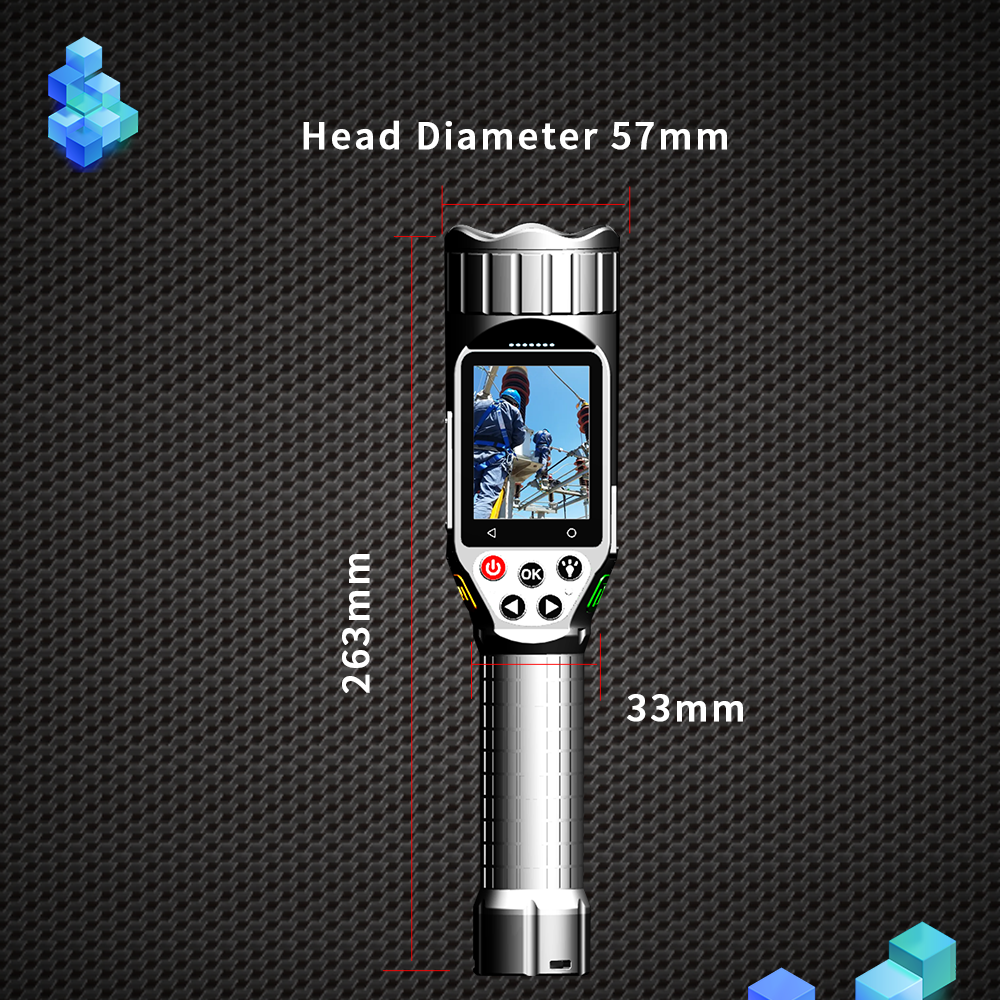

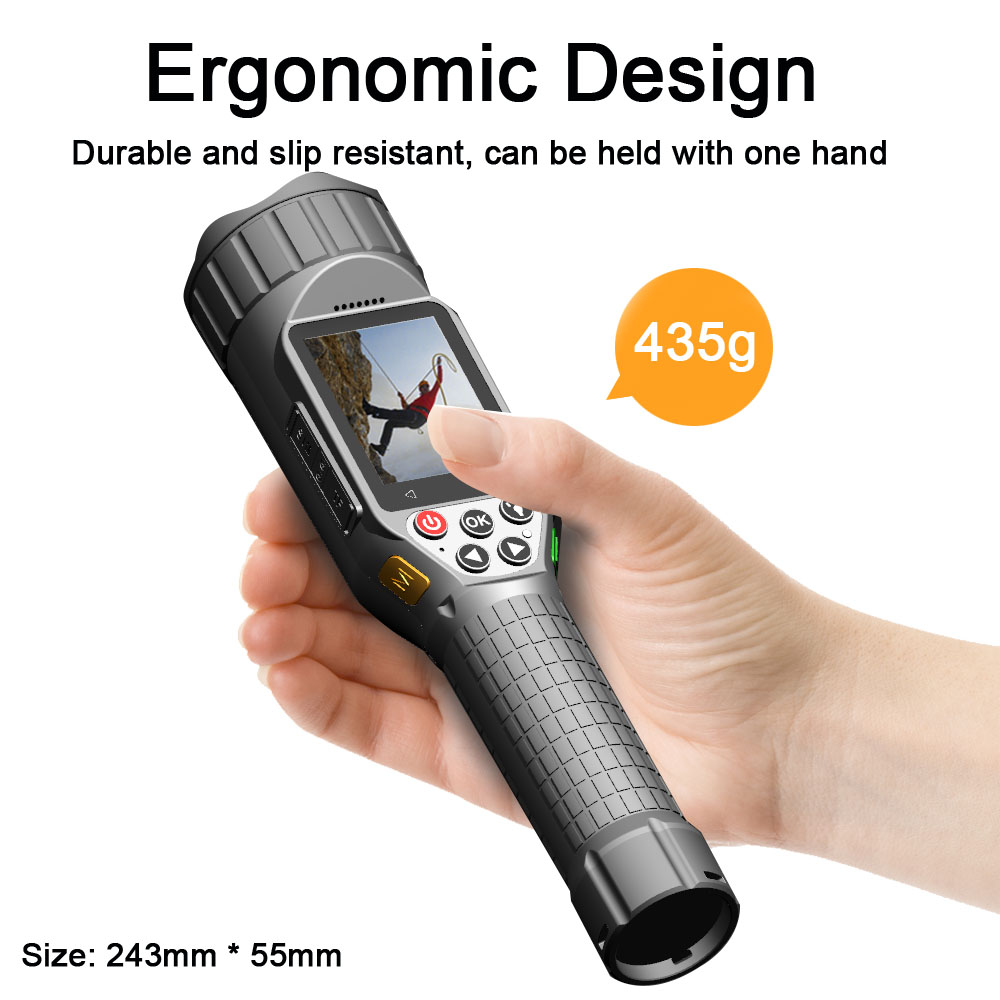

| Dimension | 243mm x 55mm (Length × Diameters) | Storage | Support TF memory card expansion to 256GB (standard 64G) | ||||
| Weight | ≤435（ without accessories） ≤255g（ without built-in battery and main battery) ≤304g（ without main battery） | Speaker | 4Ω/1W | ||||

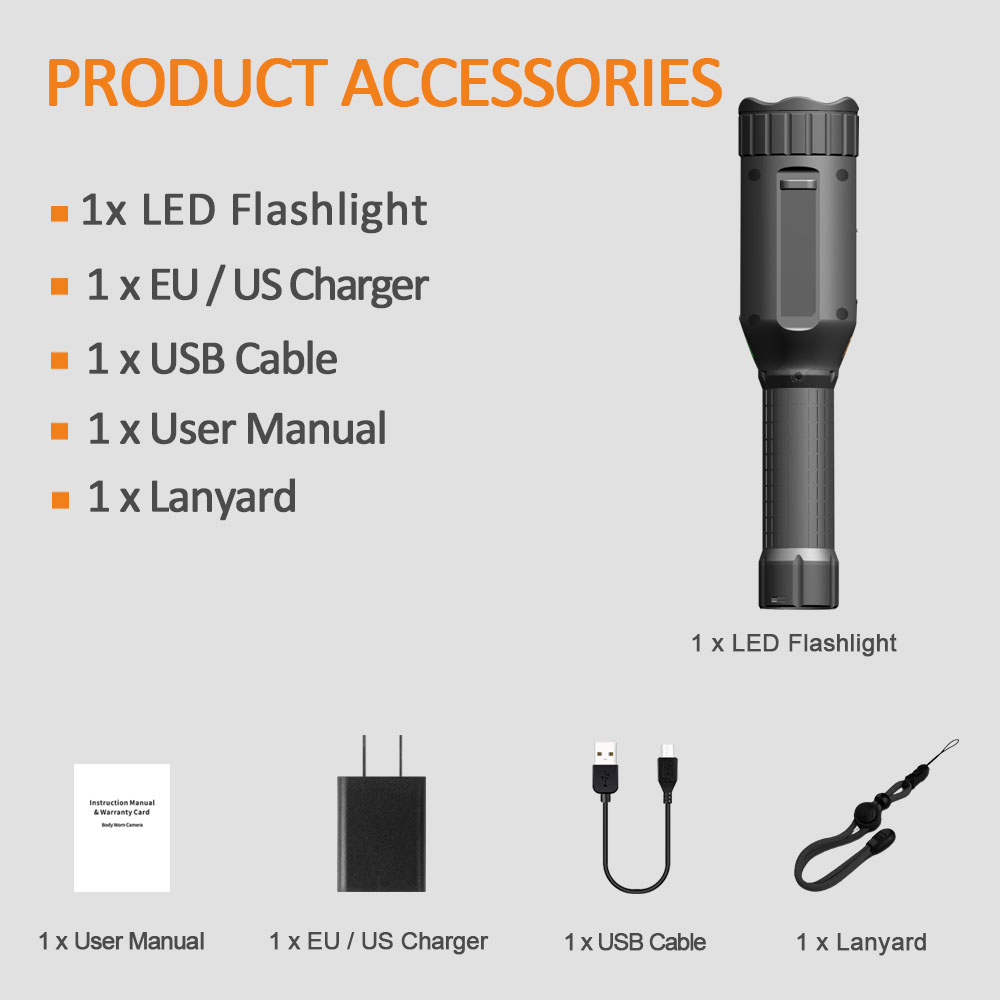

| Accessories | Lanyard, 5V/2A Charger, USB Cable | Pickup | -38dB±2dB | ||||

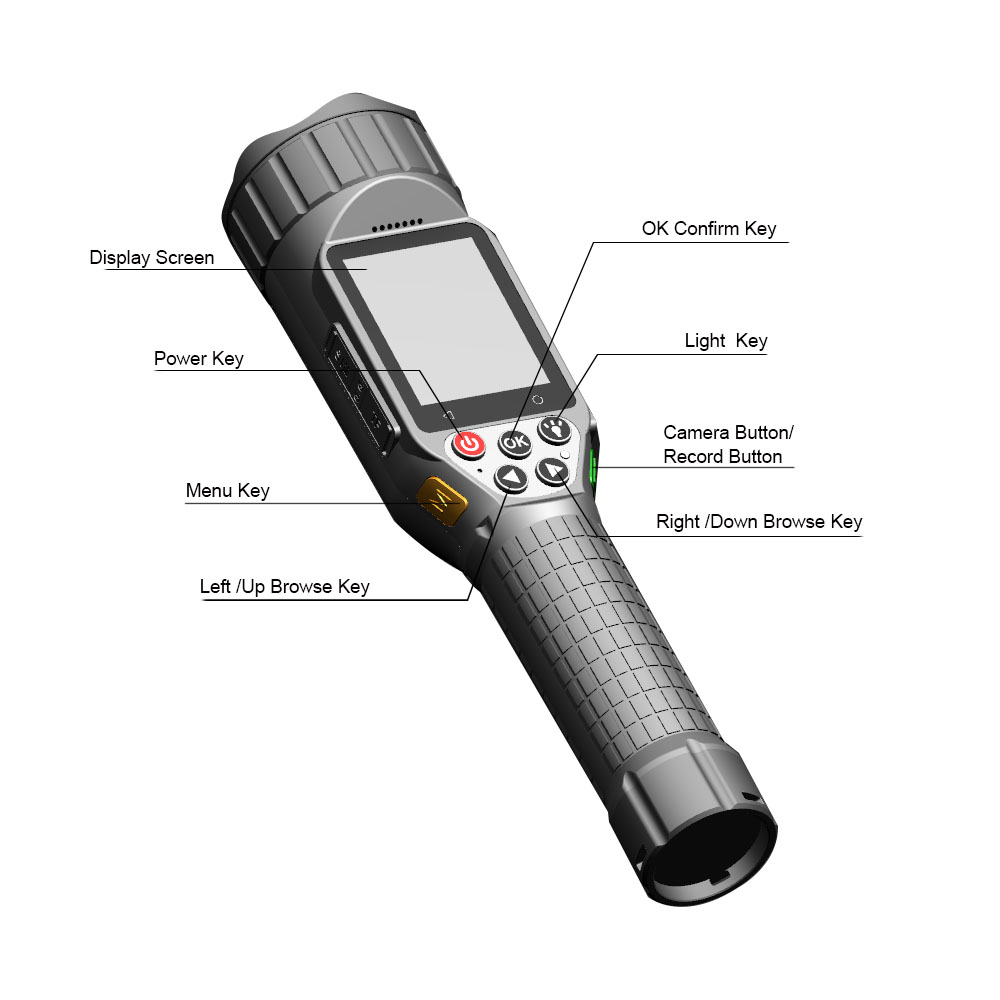

| Key | Power Key/Ok Key/ Light Key/ Left Key/ Right Key/Menu Key/ Record Key | Vibration Motor | Support | ||||

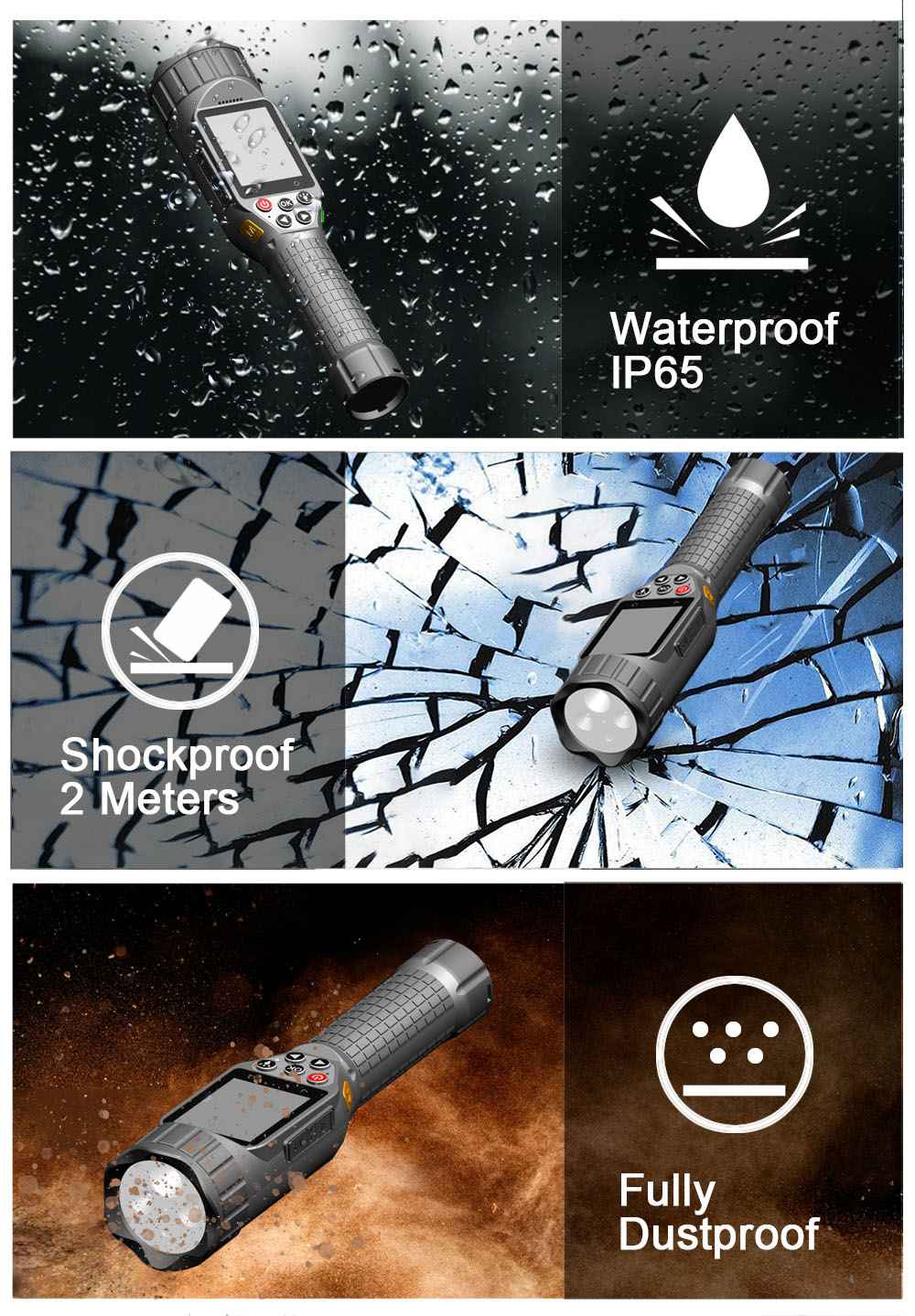

| Screen | Waterproof | IP65 | |||||
| Size | 2.4 Inch | Shockproof | 1.5 meters 4 times, random drop | ||||
| Resolution | 480*640 | ||||||
| Brightness | 350cd/m2 | Working Temperature | -20-60℃ | ||||
| Contrast Ratio | 600 : 1 | ||||||
| Camera | Storage Temperature | -30-70℃ | |||||
| Actual Pixel/ Zoom | 800W (support auto focus) | Certification | |||||
| Pixel | 48M | CE | Support | ||||
| Horizontal Field of View Angle/Distortion | 65°/2% | CCC | Support | ||||
